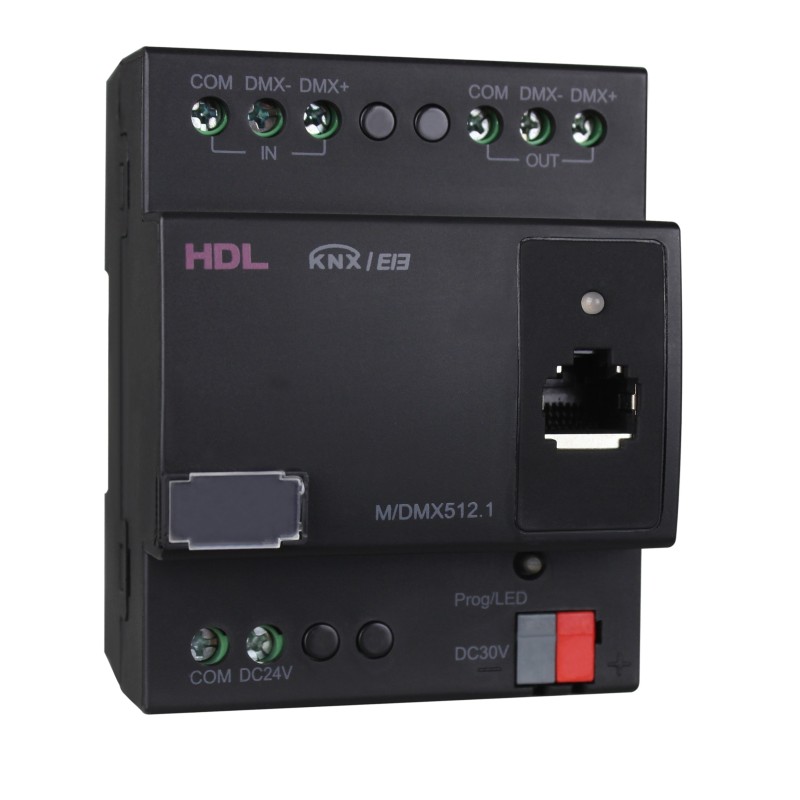

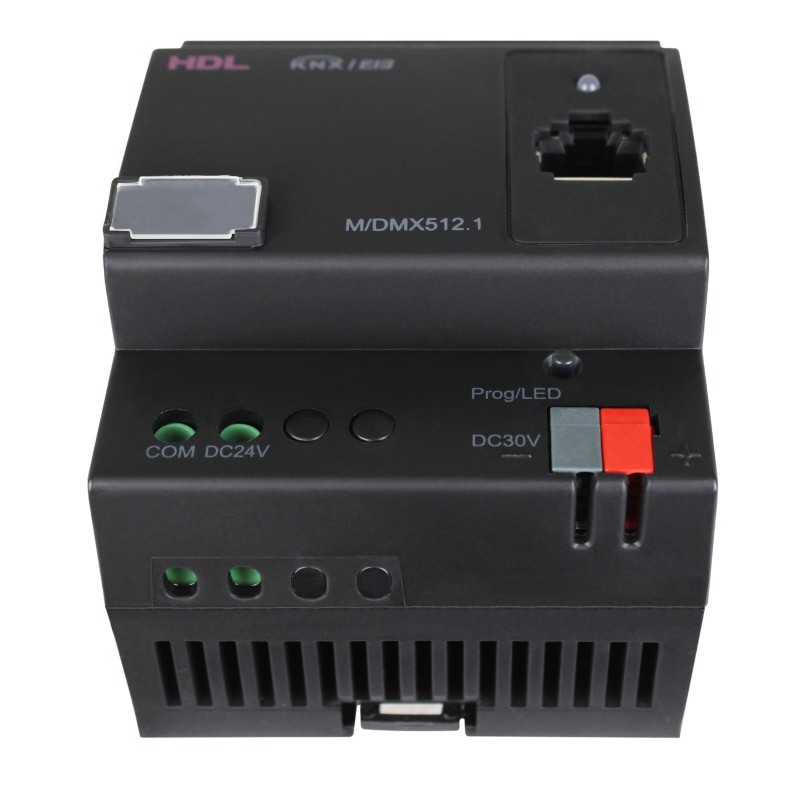

DMX Recorder Module

DIN-Rail Mount,10A per Channel, both110/250 VAC, 50-60Hz,internal use of 16A High-current magnetic relay,control motor via its relay function.
Dimension (mm):  144*90*66

DIN-Rail Mount,10A per Channel, both 110/250 VAC, 50 60Hz,internal use of 16A High-current magnetic relay.
Dimension (mm):  72*90*66

Input Voltage:AC100-240V, 50/60Hz), 1CH, 1A Mosfet dimming output, 4CH dry contact input, 4CH LED output, 12mA/CH, long press the button to control the dimming channel on/off, With scene control, staircase light control, delay control functions
Dimension (mm):  46.8×46.8×23

DIN-Rail Mount,10A per Channel, both 110/250 VAC, 50 60Hz,internal use of 16A High-current magnetic relay.
Dimension (mm):  144*90*66

DIN-Rail Mount,16A per Channel,both110/250 VAC, 50 60Hz,internal use of 50A High-current magnetic relay.
Dimension (mm):  144*90*66

DIN-Rail Mount, 3A per Channel and totally 6A, both110/220 VAC, 50-60Hz,LED status indicator and bypass button for each output,Parallel channels can form heavy current output.
Dimension (mm):  144*90*64

Din-rail Mounted, AC110V-240V, 3CH single phase Power meter,Able to Measure Active energy,current, voltage, frequency, active power, apparent power, power fact of each Channel or Totally three channels. the threshold values of current, voltage and active power of each channel can be set, supports 3CH 16A relay control, Supoorted by GraView Energy Management Software
Dimension (mm):  72*90*6

DIN-Rail Mount,10A per Channel,both 110/250 VAC, 50 60Hz,internal use of 16A High-current magnetic relay.
Dimension (mm):  216*90*66

Din Rail Mount,it is for control air condition, fan, compressor,and floor heating, It can be work in conjunction with different panel. The channels function is set via ETS software. It supports up to 7 digital temperature sensors.
Dimension (mm): 72*90*66

DIN-Rail Mount, both110/250 VAC, 50-60Hz, can output maximum 960mA Current to EIB BUS, Overload and Short-Circuit Protection, with Reset Button.
Dimension (mm): 144*90*66

Input Voltage:AC100-240V, 50/60Hz), 2CH, 10A/CH relay output, 4CH dry contact input, 4CH LED output, 12mA/CH, long press the button to control all the relay channels on/off, With scene control, staircase light control, delay control functions,
Must work with Auxiliary Power input DC20-30V
Dimension (mm):  46.8×46.8×23.5

Input Voltage:AC100-240V, 50/60Hz), 3CH, 10A/CH relay output, 7CH dry contact input, 7CH LED output, 12mA/CH, long press the button to control all the relay channels on/off, With scene control, staircase light control, delay control functions, Must work with Auxiliary Power input DC20-30V
Dimension (mm):  50×50×22.8

DIN-Rail Mount, both110/240 VAC, 50-60Hz, supports communication between the HDL KNX BUS and the DALI BUS system. capable of managing 64 DALI ballasts, support switch, dimming, color temperature adjustment, RGB/RGBW/xy coordinate color control ,DALI2 Compitable.
Dimension (mm):  72*90*64

DIN-Rail Mount, 1.5A per Channel and totally 9A, both110/220 VAC, 50-60Hz,LED status indicator and bypass button for each output, Parallel channels can form heavy current output.
Dimension (mm):  216*90*64

DIN-Rail Mount, totally 17CH (12CH 5A TV8 relay, 5CH 10A Magnetic latching relay),both110/250 VAC,50-60Hz, used for controlling lighting, curtains and FCU. Auxiliary current:97mA/30V DC.
Dimension (mm):  144*90*66

DIN-Rail Mount, 16A per Channel, both110/250 VAC,50-60Hz,internal use of 50A High-current magnetic relay.
Dimension (mm):  72*90*66
