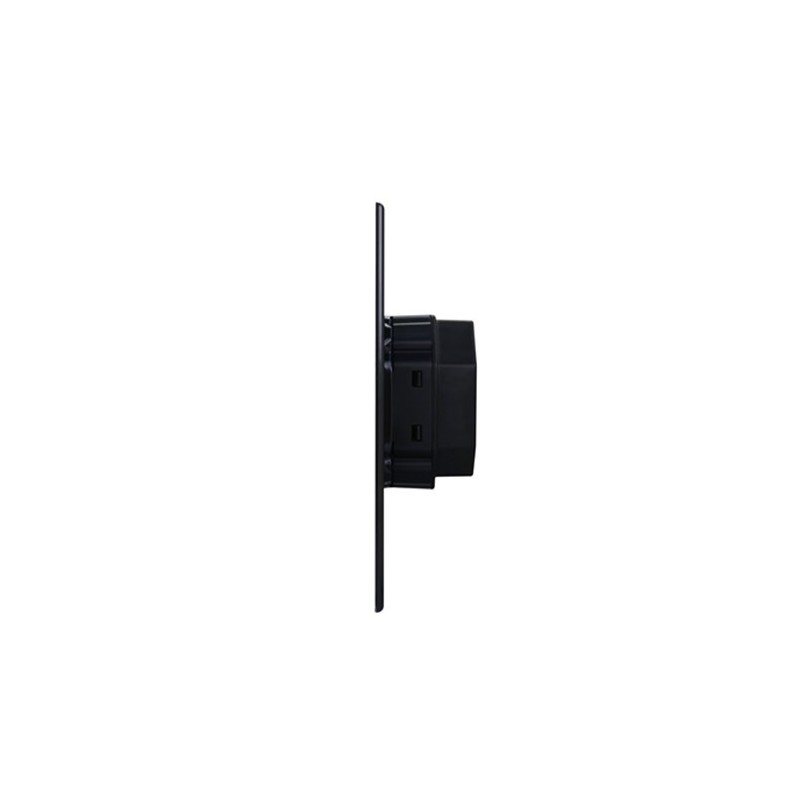

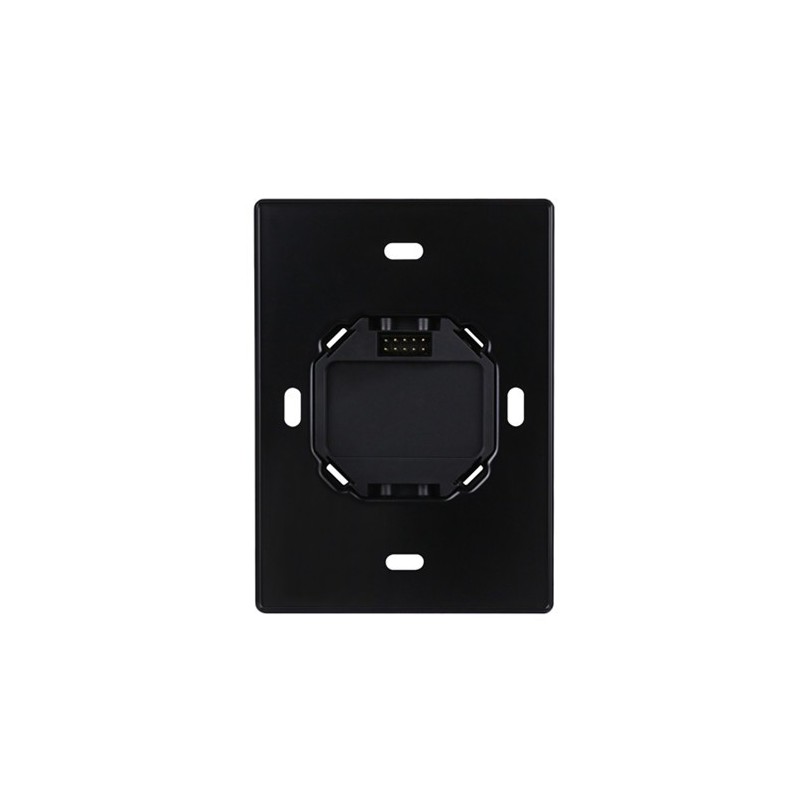

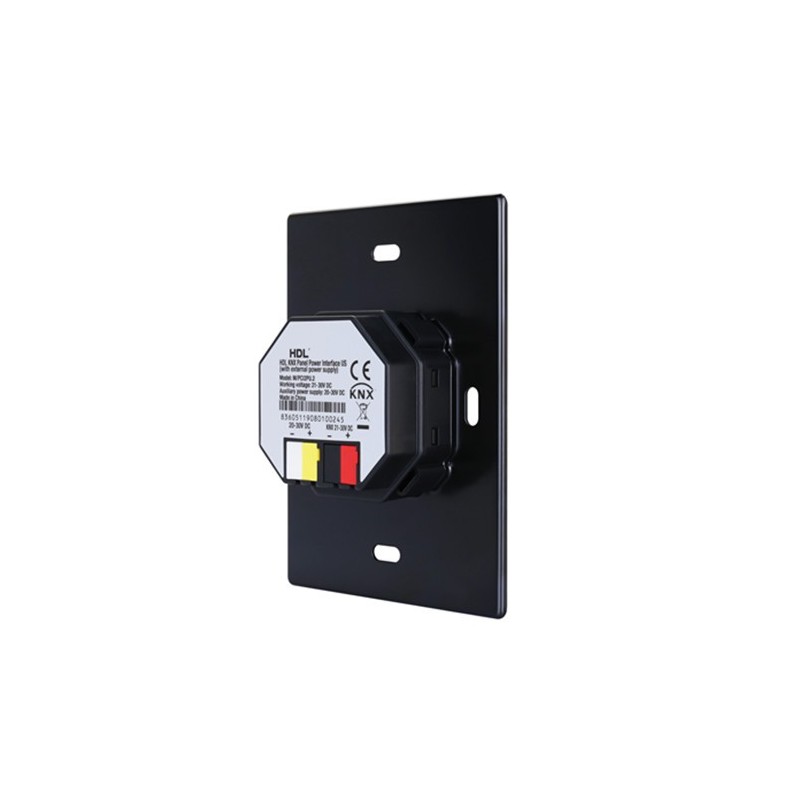

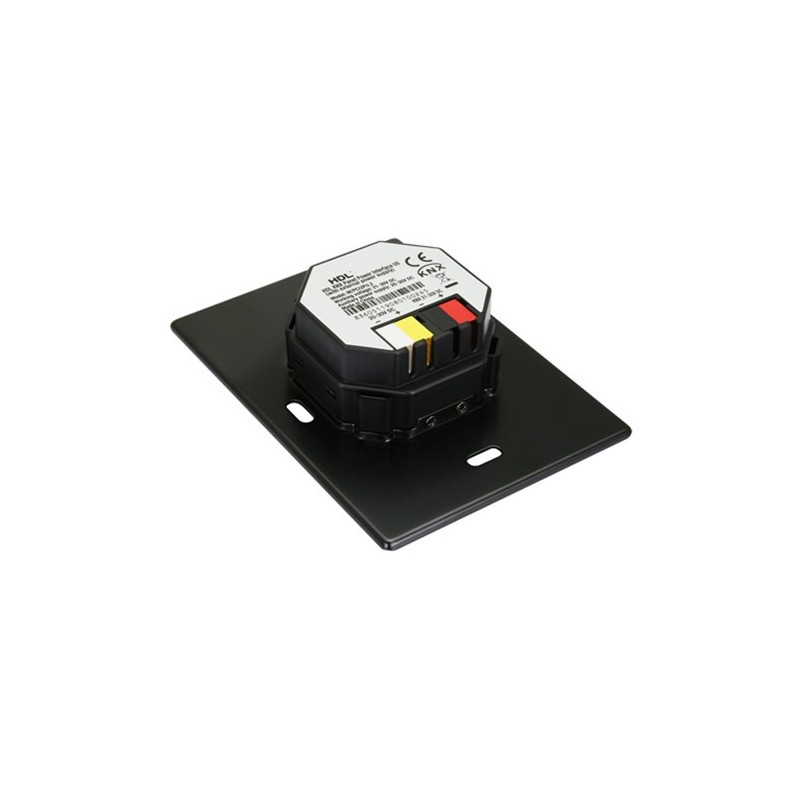

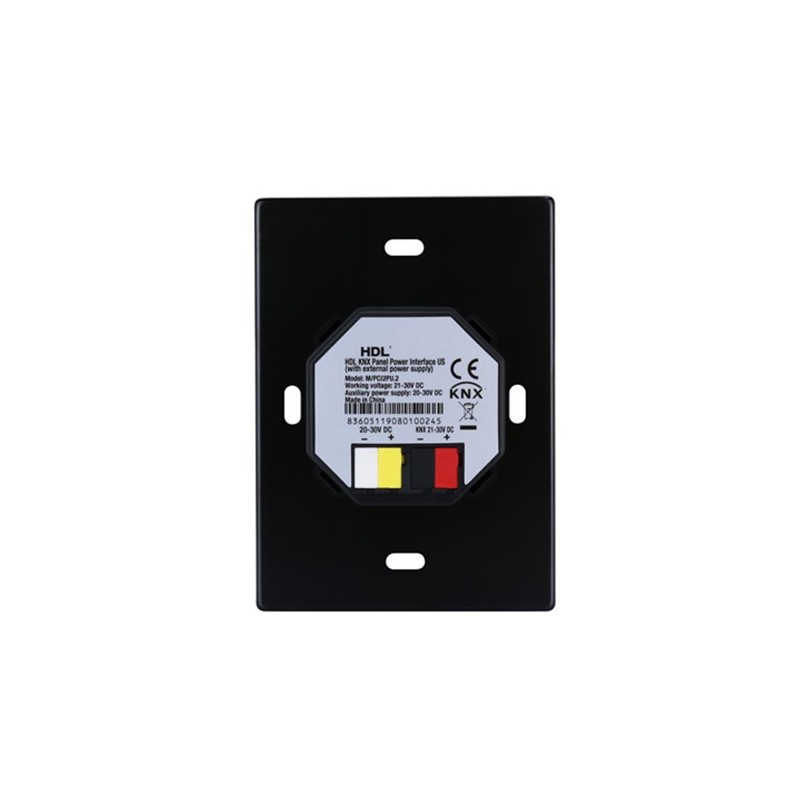

Panel Power Interface US (with External Power Supply)

Product Code: MPFPIT-1P-KT.18

Panel Power Interface EU，Rated voltage：30V DC, Rated power : 50mA , output power: 0.2A/5v DC ，provides DC power and
communicates to HDL Wall panel,Tile Series Panel 2.1

Dimensions (mm): 51.2*51.2*23.1

Product code: MPFPIT-2P-KT.18

Panel power interface with auxiliary power interface EU， Rated voltage:30V , Retaed current: 10mA/30v,output power:1A/5v,
Auxiliary power supply:400ma/24v,provides DC power and communicates to Tile Series Thermostat 2.1 MPHT-6B-KT.18

Dimensions (mm): 51.2*51.2*23.1

Input voltage:AC100-240V (50/60Hz), Auxiliary current output: 10mA/24V DC: 10mA/24V DC, 2CH 10A magnetic latching relay output, Long press the programming button to realize all relay channels on/off,
provides DC power and communicates to Granite Display, EU Type panel that model number with-A2 and Granite Series EU.Comply with 86*86 Size junction box only
Dimension (mm):  80×80×31.9

Provides DC power and communicates to HDL Wall panel For US Type panel that model number with -A2 and Granite Series US.
Dimension (mm):  86*116*30

Input volatage:21-30V DC and Auxiliary power DC24V, to provide power supply, RJ45 ethernet connection to Source 7/10/Mini built-in KNX interface and 2ch 5A relay output
Support 86*86 mm Size backbox installation

Dimension (mm):  76*76*29.2

Provides DC power and communicates to M/PTL4.1
Dimension (mm):  86*86*30

Panel Power Interface With 4CH 10A Relay，For Tile Series Panel 2.1 ( depth of backbox 50mm)

Dimensions (mm): 68.9*68.2*26.5

Provides DC power and communicates to HDL Tile Series Wall panel Excludes Tile Thermostat 2.0
Dimension (mm):  81.4*81.4*27

Input voltage:AC100-240V (50/60Hz), Auxiliary current output: 10mA/24V DC: 10mA/24V DC, 3CH 10A magnetic latching relay output, Long press the programming button to realize all relay channels on/off,provides DC power and communicates to Granite Display, EU Type panel that model number with-A2 and Granite Series EU,comply with 86*86 Size junction box only
Dimension (mm):  80×80×31.9

Provides DC power and communicates to Tile Series Thermostat 2.0, Tile Display
Dimension (mm):  81.4*81.4*27

Provides DC power and communicates to HDL Wall panel,
For EU Type panel that model number without-A2 .
Dimension (mm):  86*86*30

Tile Series 1 Gang Panel Base Frame, MPFPIT-0210-KT.17 & MPFPIT-0410-KT.17

Dimensions (mm): 80.6 * 86.6

Provides DC power and communicates to HDL Wall panel For US Type panel that model number without-A2 .
Dimension (mm):  86*116*30

Panel Power Interface EU, provides DC power and communicates to HDL Wall panel,
For EU Type panel that model number with-A2 and Granite 4 button EU.

Tile Series 1 Gang Panel Base Frame 2.1 EU，For MPFPIT-1P-KT.18 & MPFPIT-2P-KT.18

Dimensions (mm): 80.6 * 86.6

Panel Power Interface With 2CH 10A Relay，For Tile Series Panel 2.1 depth of backbox 50mm)

Dimensions (mm): 68.9*68.2*26.5
