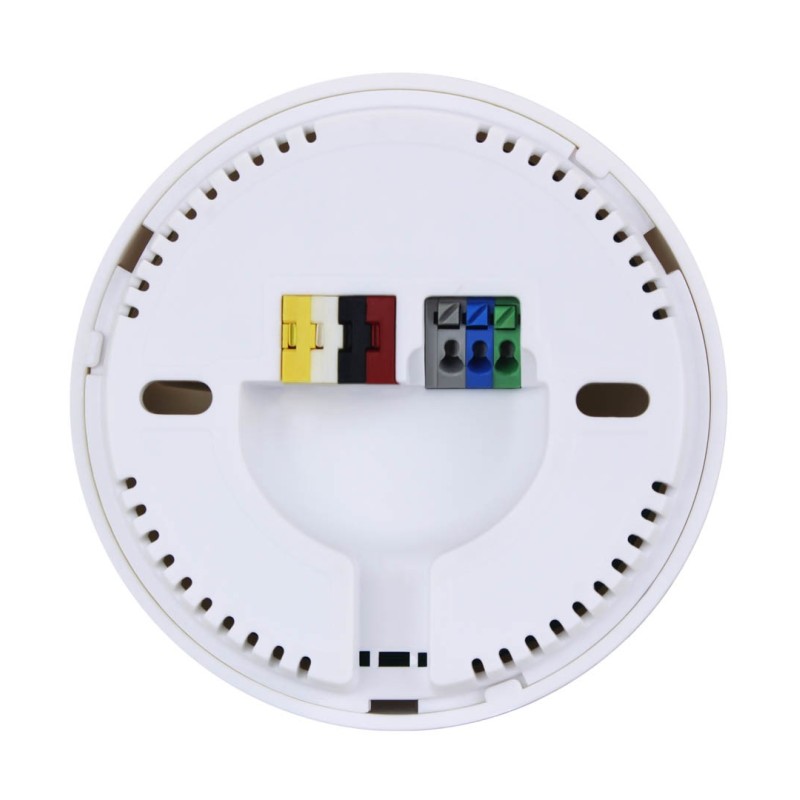

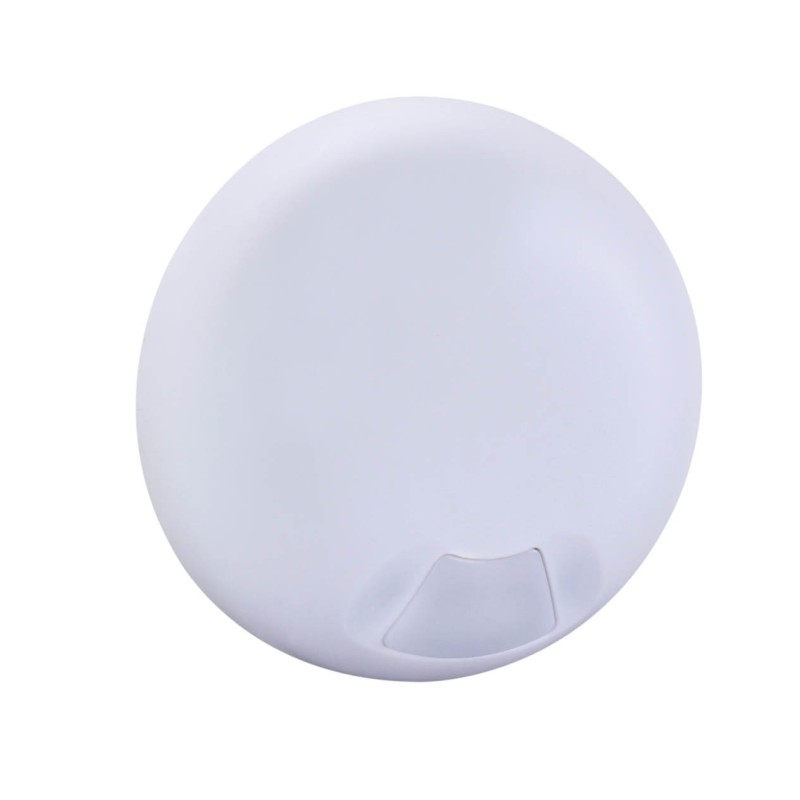

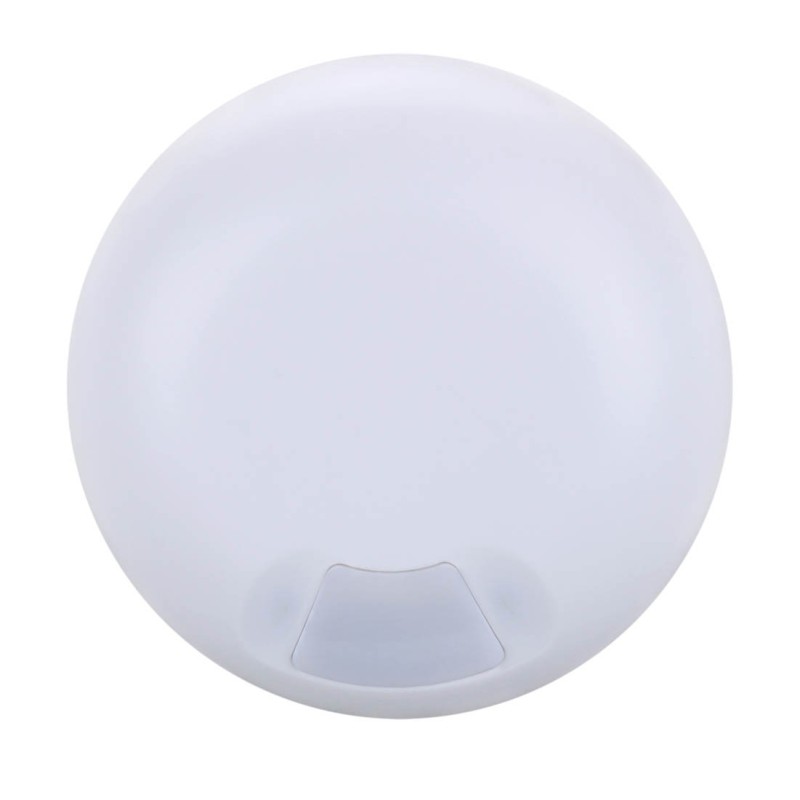

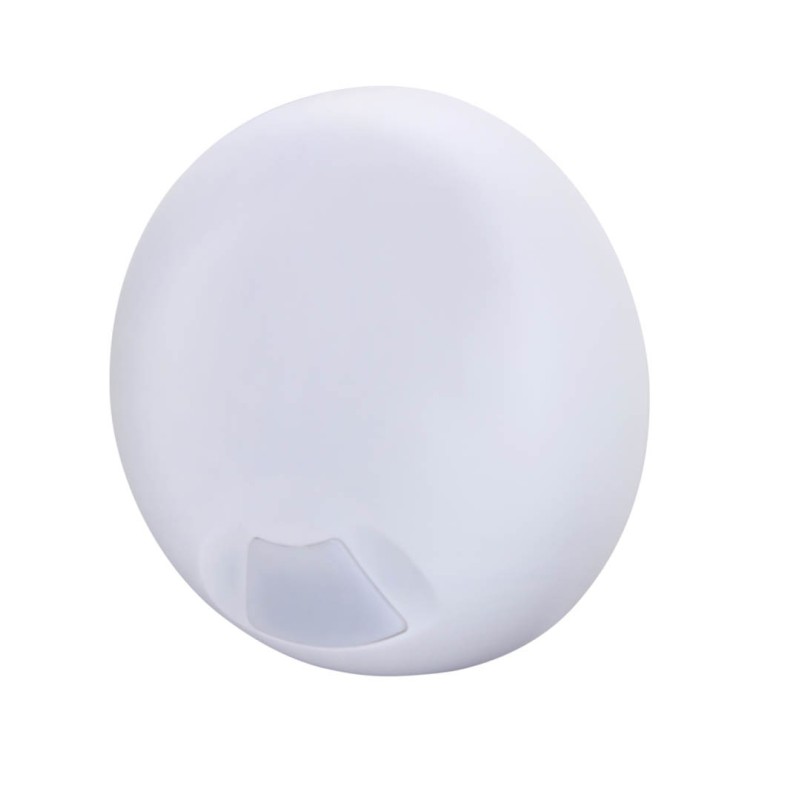

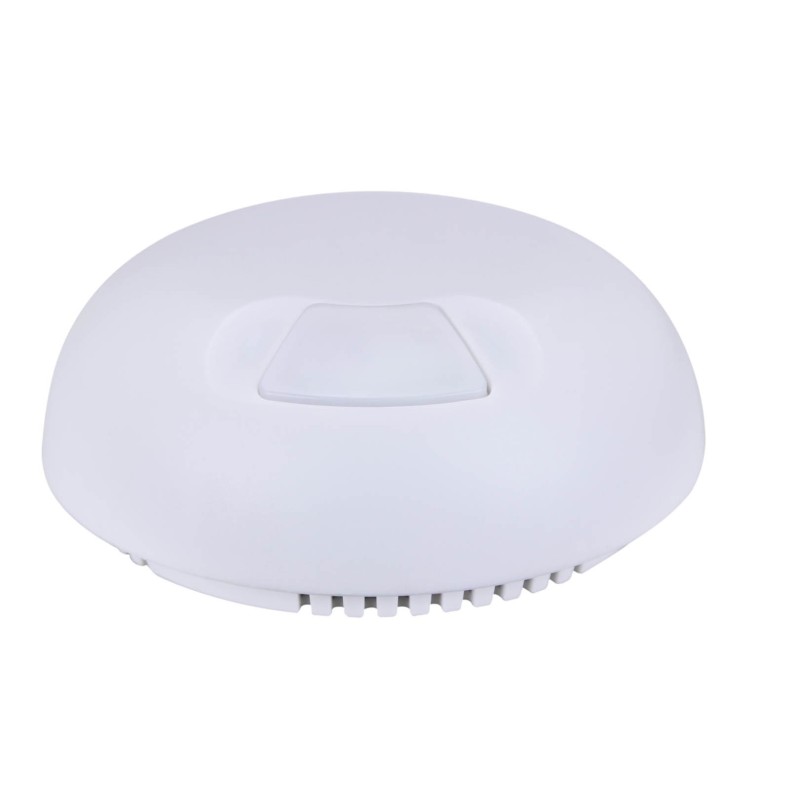

Includes 4 independent logic blocks and 1 combined logic block, the logic relation can be “AND” “OR” , logic input conditions can be the condition of LUX sensor, microwave sensor, temperature sensor, dry contact and external telegram, Microwave detection range: H:3m D:10m
Dimension (mm): 84*84*32
Includes PIR sensor, temperature sensor and brightness sensor. 4 independent logical blocks and 1 combined block are available, and each block contains 10 object outputs. Logical relations AND, OR can be set and single mode and master / slave mode are supported. motion detection range H:3m D:12m.
Dimension (mm): Φ85*85
Standard KNX Terminal, includes motion sensor, LUX sensor and external telegram detection, motion detection range H:3m D:9m.
Dimension (mm): 63*63*38
Includes Lux sensor, motion sensor and temperature sensor, support trigger alarms, adjust lighting and regulate HVAC systems effortlessly. motion detection range H:2.5m D:24m.
Dimension (mm): 84*84*42
Standard KNX Terminal, includes motion sensor, Lux sensor, temperature sensor, dry contact and external telegrams, motion detection range H:2.5m D:8m.
Dimension (mm): 80*80*28
Includes LUX sensor, microwave sensor,humidity sensor,temperature sensor, dry contact, external telegram, Microwave detection range: Φ30m (Installation height:3m)
Dimension (mm): 126*78*114
Occupancy Plus Sensor，Input voltage12 - 30V DC, support surface mount & surface mount，built in 24GHz millimeter wave
radar technology，includes LUX sensor, Temprature sensor , 2 ch Dry contact input, 1HVAC control，1 Constant brightness
control, logic block. supports Master & slave mode. Maximum detection range: diameter 8m，Support KNX Secure
Dimensions (mm): Φ66 x 34.6, Φ48.5 x 27.5
Includes 4 independent logic blocks and 1 combined logic block, the logic relation can be “AND” “OR” , logic input conditions can be the condition of LUX sensor, microwave sensor, temperature sensor, dry contact and external telegram, Microwave detection range: H:3m D:10m
Dimension (mm): 84*84*32
