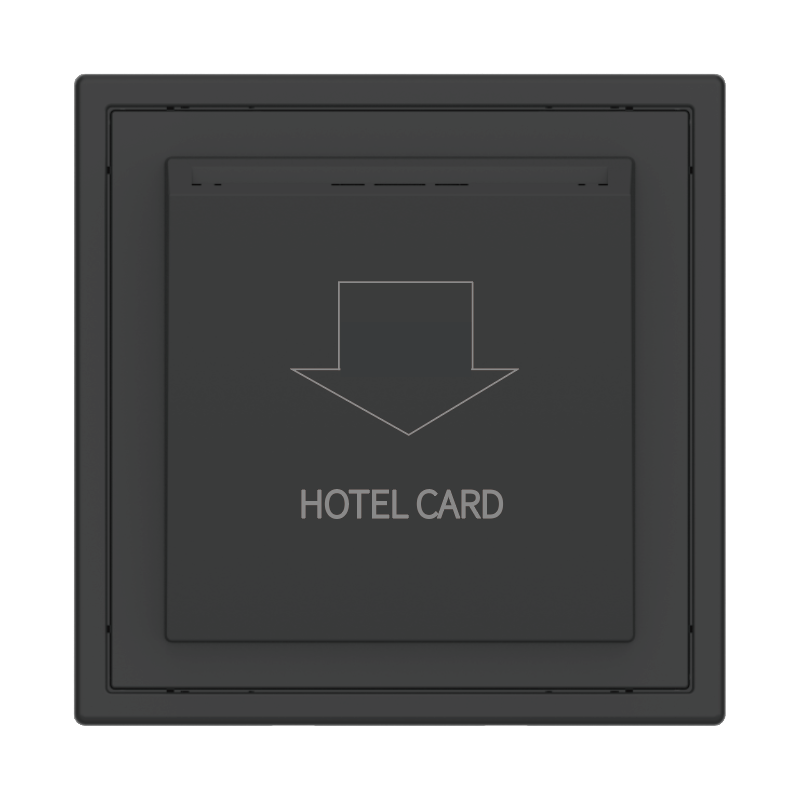

Tile Series Card Holder Panel 2.1, Dry contact， master card panel for energy control of hotel guest room , Voltage 24V DC ，
High frequency M1 card 13.56 MHz ，Four colors(ivory white, ash gray, Champagne Gold and space gray) are available for plastic,
Frame is NOT included
Dimensions (mm): 86×86×45.8
Product code: MPHT-6B-KT.18
Tile Series Thermostat 2.1, used to control air conditioning, floor heating and fresh air system, metal(Champagne Gold/space gray color),
Built-in temperature sensor, humidity sensor and proximity sensor, with LED backlight.
Frame is NOT included,
Powered by MPFPIT-2P-KT.18
Dimensions (mm): 86*86*10.5
iTouch Series 4 Buttons Touch Panel EU, with Aluminum Frame, used to control lighting,curtain and scene, LED backlight and LED indicator.
Powered by M/PCI.1-A
Dimension (mm): 86*86*10
Product code: MPHT-6B-KT.18
Tile Series Thermostat 2.1, used to control air conditioning, floor heating and fresh air system, plastic(ivory white/ash gray/Champagne Gold/space gray),
Built-in temperature sensor, humidity sensor and proximity sensor, with LED backlight.
Frame is NOT included,
Powered by MPFPIT-2P-KT.18
Dimensions (mm): 86*86*10.5
with Aluminum Frame, used to control lighting,curtain and scene, LED backlight and LED indicator. Powered by M/PCI.3-A
Dimension (mm): 86*116*10
with Aluminum Frame, used to control lighting,curtain and scene, LED backlight and LED indicator. Powered by M/PCI.1-A
Dimension (mm): 86*86*10
Product code: MPBT-4B-KT.18
Tile Series 4 button smart panel 2.1, used to control lighting, curtain and scene, Metal(Champagne Gold/space gray),
Built-in temperature sensor and proximity sensor, with LED backlight,customizable icon,
Frame is NOT included,
Powered by MPFPIT-1P-KT.18
Dimensions (mm): 86*86*10.5
Product code: MPBT-4B-KT.18
Tile Series 4 button smart panel 2.1, used to control lighting, curtain and scene, Metal(Champagne Gold/space gray),
Built-in temperature sensor and proximity sensor, with LED backlight,customizable icon,
Frame is NOT included,
Powered by MPFPIT-1P-KT.18
Dimensions (mm): 86*86*10.5
Product code: MPBT-2B-KT.18
Tile Series 2 button smart panel 2.1, used to control lighting, curtain and scene, plastic(ivory white/ash gray/Champagne Gold/space
gray), Built-in temperature sensor and proximity sensor, with LED backlight, customizable icon, Frame is NOT included,
Powered by MPFPIT-1P-KT.18
Dimensions (mm): 86*86*10.5
Product code: MPBT-4B-KT.18
Tile Series 4 button smart panel 2.1，used to control lighting, curtain and scene, plastic(ivory white/ash gray/Champagne Gold/space gray),
Built-in temperature sensor and proximity sensor, with LED backlight,customizable icon,
Frame is NOT included,
Powered by MPFPIT-1P-KT.18
Dimensions (mm): 86*86*10.5
Product code: MPBT-3B-KT.18
Tile Series 3 button smart panel 2.1, used to control lighting, curtain and scene, Metal(Champagne Gold/space gray),
Built-in temperature sensor and proximity sensor, with LED backlight,customizable icon,
Frame is NOT included,
Powered by MPFPIT-1P-KT.18
Dimensions (mm): 86*86*10.5
Product Code: MPBT-1B-KT.18
Tile Series 1 button smart panel 2.1, used to control lighting,curtain and scene, plastic(ivory white/ash gray/champagne
gold/space gray). Built-in temperature sensor and proximity sensor, with LED backlight,customizable icon.
Frame is NOT included,
Powered by MPFPIT-1P-KT.18
Dimensions (mm): 86*86*10.5
Android OS with built-in Smart home App to control lighting, curtain,air conditioning, security, floor heating, music etc, 1280*720 Resolution, built-in Camera and Microphone to support between-in Screen intercom,
Built-in proximity sensor/Lux sensor, Bult-in temperature and humidiry sensor, Ethernet access via Wifi or RJ45, IP20, Color Option: Ink Black, Pine Green, Moutain Blue.
Powered by specialized power interface to support Buspro, KNX, Zigbee protoco.
Dimension (mm): 219*102*26
Product Code: MPBT-1B-KT.18
Tile Series 1 button smart panel 2.1, used to control lighting,curtain and scene, plastic(ivory white/ash gray/champagne
gold/space gray). Built-in temperature sensor and proximity sensor, with LED backlight,customizable icon.
Frame is NOT included,
Powered by MPFPIT-1P-KT.18
Dimensions (mm): 86*86*10.5
Product code: MPBT-2B-KT.18
Tile Series 2 button smart panel 2.1, used to control lighting, curtain and scene, plastic(ivory white/ash gray/Champagne Gold/space
gray), Built-in temperature sensor and proximity sensor, with LED backlight, customizable icon, Frame is NOT included,
Powered by MPFPIT-1P-KT.18
Dimensions (mm): 86*86*10.5
Product code: MPHT-6B-KT.18
Tile Series Thermostat 2.1, used to control air conditioning, floor heating and fresh air system, plastic(ivory white/ash gray/Champagne Gold/space gray),
Built-in temperature sensor, humidity sensor and proximity sensor, with LED backlight.
Frame is NOT included,
Powered by MPFPIT-2P-KT.18
Dimensions (mm): 86*86*10.5
Product code: MPBT-3B-KT.18
Tile Series 3 button smart panel 2.1, used to control lighting, curtain and scene, plastic(ivory white/ash gray/Champagne Gold/space gray),
Built-in temperature sensor and proximity sensor, with LED backlight, customizable icon,
Frame is NOT included
Poweredby MPFPIT-1P-KT.18
Dimenstions (mm): 86*86*10.5
Tile Series Card Holder Panel 2.1, Dry contact， master card panel for energy control of hotel guest room , Voltage 24V DC ，
High frequency M1 card 13.56 MHz ，Four colors(ivory white, ash gray, Champagne Gold and space gray) are available for plastic,
Frame is NOT included
Dimensions (mm): 86×86×45.8
