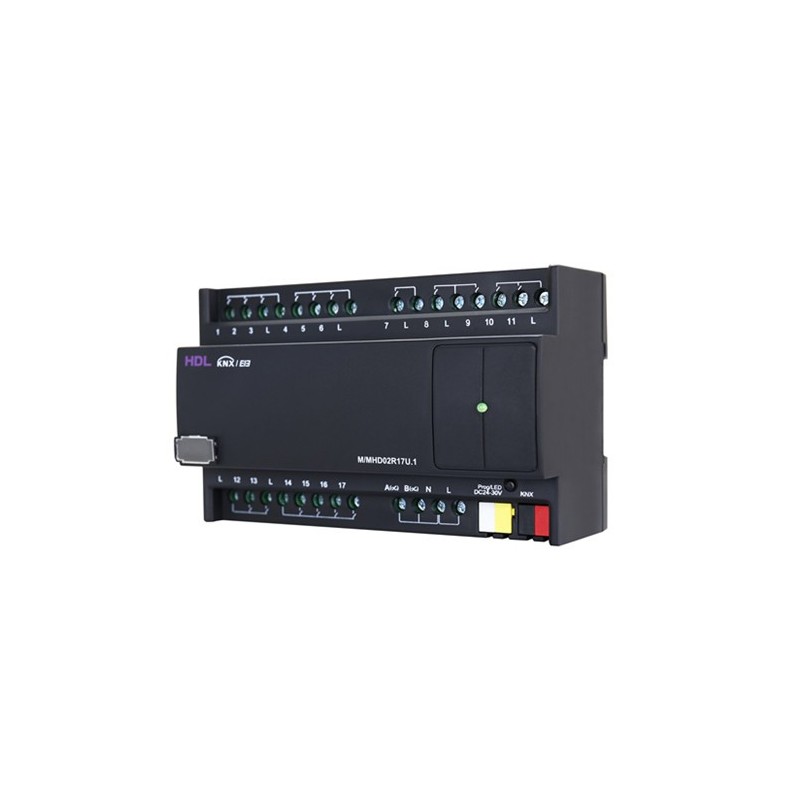

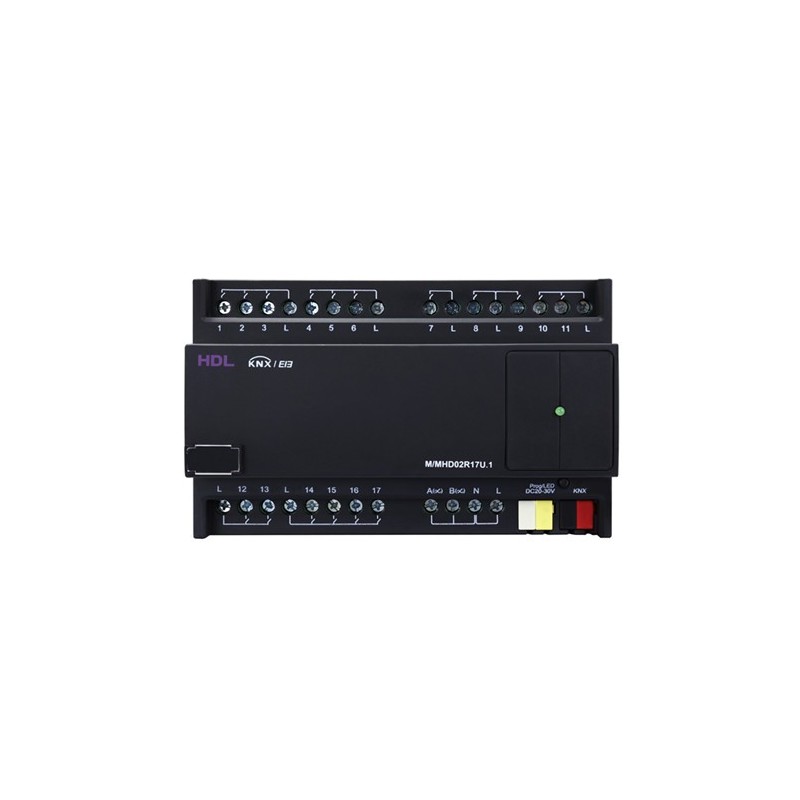

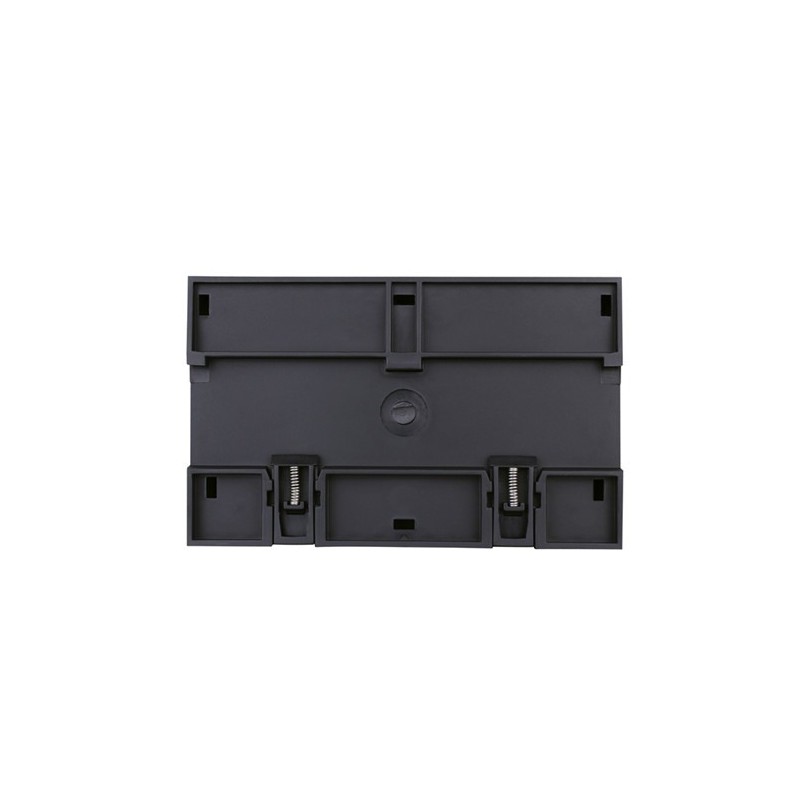

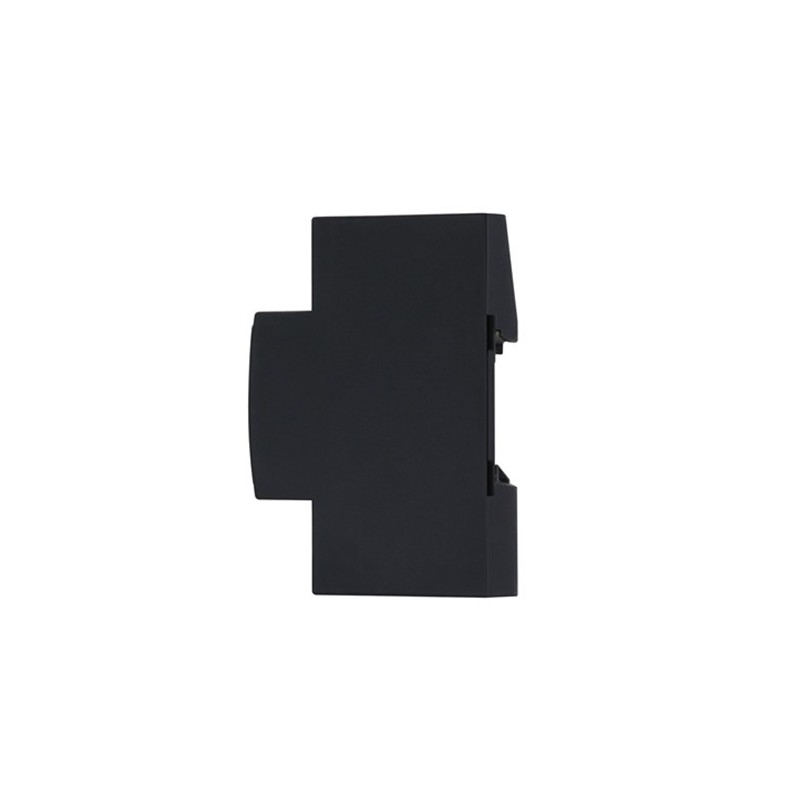

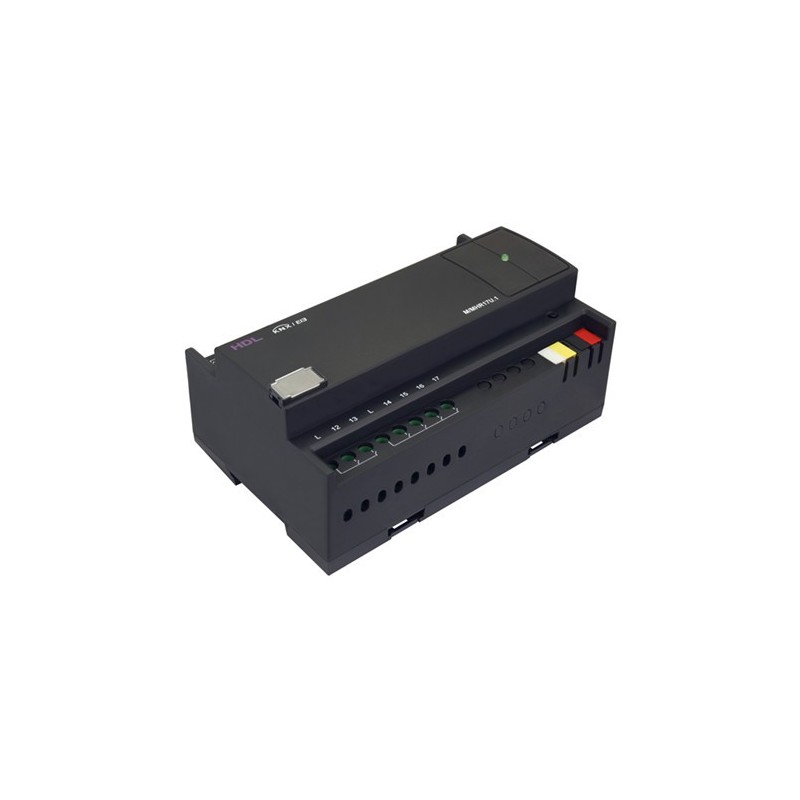

19CH Mix Actuator

DIN-Rail Mount,10A per Channel, both 110/250 VAC, 50 60Hz,internal use of 16A High-current magnetic relay.
Dimension (mm):  144*90*66

DIN-Rail Mount,16A per Channel, both110/250 VAC, 50-60Hz,internal use of 50A High-current magnetic relay.
Dimension (mm):  144*90*66

DIN-Rail Mount,10A per Channel, both 110/250 VAC, 50 60Hz,internal use of 16A High-current magnetic relay.
Dimension (mm):  72*90*66

DIN-Rail Mount,16A per Channel,both110/250 VAC, 50 60Hz,internal use of 50A High-current magnetic relay.
Dimension (mm):  72*90*66

DIN-Rail Mount,10A per Channel, both110/250 VAC, 50-60Hz,internal use of 16A High-current magnetic relay,control motor via its relay function.
Dimension (mm):  144*90*66

Din Rail Mount,it is for control air condition, fan, compressor,and floor heating, It can be work in conjunction with different panel. The channels function is set via ETS software. It supports up to 7 digital temperature sensors.
Dimension (mm): 72*90*66

DIN-Rail Mount, 5CH for relay output and 2CH DC 0-10V output. with FCU control and floor heating control, it has High-Medium-Low Fan Speed,also cooling and heating control if selected FCU function in ETS , it has 7CH floor heating control if selected by ETS, Support 7 digital temperature sensors.
Dimension (mm): 72*90*66

DIN-Rail Mount,16A per Channel, both110/250 VAC, 50-60Hz,internal use of 50A High-current magnetic relay.
Dimension (mm):  216*90*66

DIN-Rail Mount, 16A per Channel, both110/250 VAC,50-60Hz,internal use of 50A High-current magnetic relay.
Dimension (mm):  72*90*66

DMX Recorder Module, DIN-Rail Mount, Input signal: DMX512, HDL NET DMX, ArtNet DMX, Output Singal: DMX512, HDL NET DMX, ArtNet DMX,
This module can be used for control devices built in DMX Protocol such as LED Color changer, Move head and Laser Light.

DIN-Rail Mount, totally 17CH (12CH 5A TV8 relay, 5CH 10A Magnetic latching relay),both110/250 VAC,50-60Hz, used for controlling lighting, curtains and FCU. Auxiliary current:97mA/30V DC.
Dimension (mm):  144*90*66

DIN-Rail Mount,16A per Channel, both 110/250 VAC, 50 60Hz,internal use of 50A High-current magnetic relay.
Dimension (mm):  216*90*66

DIN-Rail Mount, 10A per channel, both110/250 VAC, 50 60Hz,Control types include both input and output, so absorption and output type ballast can be connected to this module.
Dimension (mm):  144*90*66

DIN-Rail Mount, 3A per Channel and totally 6A, both110/220 VAC, 50-60Hz,LED status indicator and bypass button for each output,Parallel channels can form heavy current output.
Dimension (mm):  144*90*64

Din-rail Mounted, AC110V-240V, 3CH single phase Power meter,Able to Measure Active energy,current, voltage, frequency, active power, apparent power, power fact of each Channel or Totally three channels. the threshold values of current, voltage and active power of each channel can be set, supports 3CH 16A relay control, Supoorted by GraView Energy Management Software
Dimension (mm):  72*90*6

DIN-Rail Mount, both110/240 VAC, 50-60Hz, supports communication between the HDL KNX BUS and the DALI BUS system. capable of managing 64 DALI ballasts, support switch, dimming, color temperature adjustment, RGB/RGBW/xy coordinate color control ,DALI2 Compitable.
Dimension (mm):  72*90*64
