4 Zone Dry Contact Module
includes 4 Dry Contact input channels, coupled with a temperature sensor and 4 dimming output channels or provide LED status indication.
Dimension (mm): 49*31*12
SKU :
M/S04.1

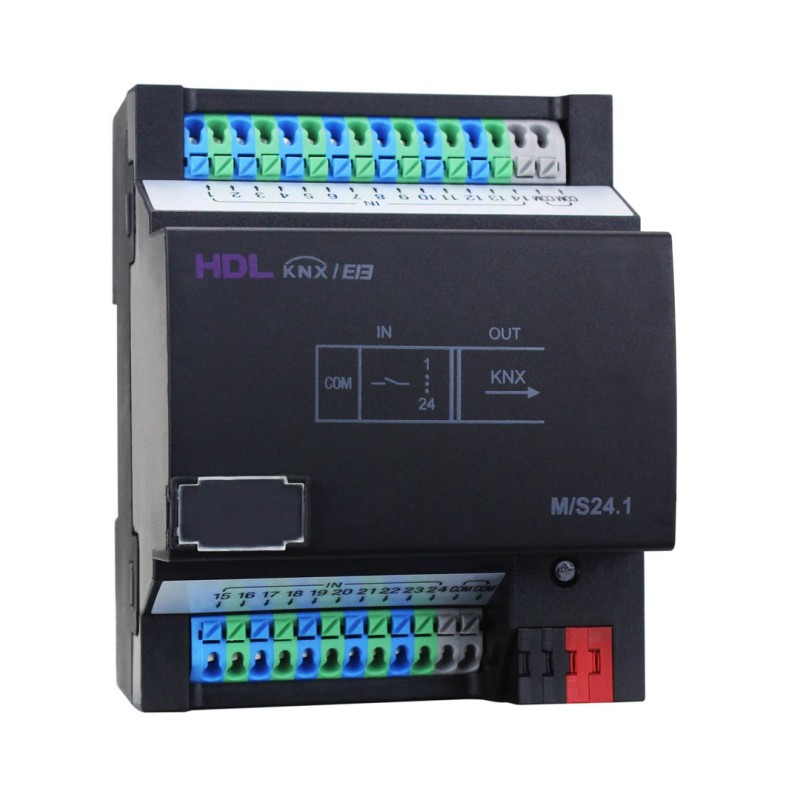

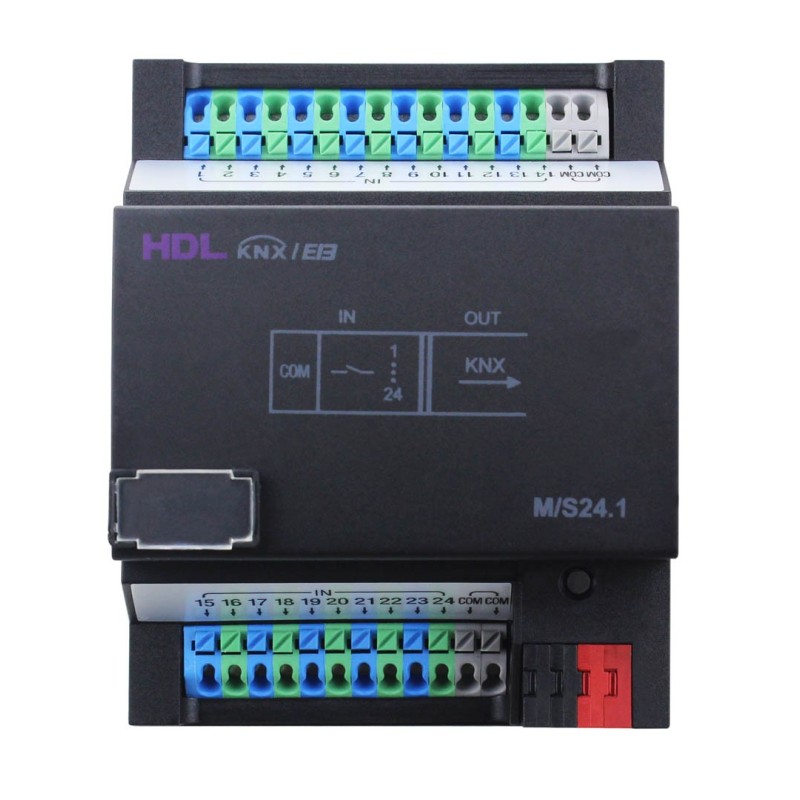

24 Zone Dry Contact Module
SKU :
M/S24.1
Includes 24 Dry Contact input channels, serves as a bridge between mechanical or electronic control outputs and the KNX bus system. The unit enables the control of diverse targets, like dimmers, curtains, shutters, bells, etc.
Dimension (mm): 72*90*63
Specifications
- Bus Power
- 16mA
- Protocol
- KNX
11 other products in the same category:
8 Zone Dry Contact Module
Includes 8 Dry Contact input channels, which is able to control sensors and logic controllers. The module can also control a diverse range of targets such as dimming controllers, curtain/shutter controllers, and switch controllers.
Dimension (mm): 49*31*12
SKU :
M/S08.1
Infrared Emitter
Supports 4 channel infrared interfaces, totally can store up to 650 infrared codes, The control modes are ON/OFF control, Temperature control, Cooling/Heating, Fan speed control, Swing control etc.
Dimension (mm): 49*31*12
SKU :
M/IRAC.1
48 Zone Dry Contact Module
can be used as binary inputs and binary outputs. Binary input: used to switching, dimming and curtain control,Binary output: used to drive signal LEDs with on/off control or percentage control,Logic function: AND, OR, NAND, NOR, XOR, Auxiliary current:10mA/30V DC.
Dimension (mm): 72*90*64
SKU :
M/S48.1
Infrared Emission Probe
to work with HDL-M/IRAC.1 Infrared Emitter.
SKU :
Infrared Emission Probe
Tile Series Card Holder Panel 2.1 - Champagne Gold
Tile Series Card Holder Panel 2.1, Dry contact， master card panel for energy control of hotel guest room , Voltage 24V DC ，
High frequency M1 card 13.56 MHz ，Four colors(ivory white, ash gray, Champagne Gold and space gray) are available for plastic,
Frame is NOT included
Dimensions (mm): 86×86×45.8
SKU :
MPCT-H-NP.18
2.5 Meter Temperature Probe
Analog sensor, work with Dry Contact Module for temperature collection.
SKU :
TTS/APR 1.0
Infrared Code Learner
USB Pluggable, IR learning/ Programming Kit. Comes with Software driver, for Pro installers and Integrators.
Dimension (mm): 98*70*38
SKU :
HDL-MIR01L.01
Tile Series Card Holder Panel 2.1 - Space Gray
Tile Series Card Holder Panel 2.1, Dry contact, κύριο πάνελ κάρτας για έλεγχο ενέργειας σε δωμάτιο ξενοδοχείου. Τάση: 24V DC. Υψηλής συχνότητας κάρτα M1 13.56 MHz.
Διατίθενται τέσσερα χρώματα για πλαστικό: ιβουάρ λευκό, γκρι στάχτης, σαμπανιζέ χρυσό και γκρι διαστήματος.
Το πλαίσιο ΔΕΝ περιλαμβάνεται.
Διαστάσεις (mm): 86 × 86 × 45.8
SKU :
MPCT-H-NP.18
Tile Series Card Holder Panel 2.1 - Ivory White
Tile Series Card Holder Panel 2.1, Dry contact， master card panel for energy control of hotel guest room , Voltage 24V DC ，
High frequency M1 card 13.56 MHz ，Four colors(ivory white, ash gray, Champagne Gold and space gray) are available for plastic,
Frame is NOT included
Dimensions (mm): 86×86×45.8
SKU :
MPCT-H-NP.18
Tile Series Card Holder Panel 2.1 - Ash Gray
Tile Series Card Holder Panel 2.1, Dry contact， master card panel for energy control of hotel guest room , Voltage 24V DC ，
High frequency M1 card 13.56 MHz ，Four colors(ivory white, ash gray, Champagne Gold and space gray) are available for plastic,
Frame is NOT included
Dimensions (mm): 86×86×45.8
SKU :
MPCT-H-NP.18
Includes 24 Dry Contact input channels, serves as a bridge between mechanical or electronic control outputs and the KNX bus system. The unit enables the control of diverse targets, like dimmers, curtains, shutters, bells, etc.
Dimension (mm): 72*90*63
