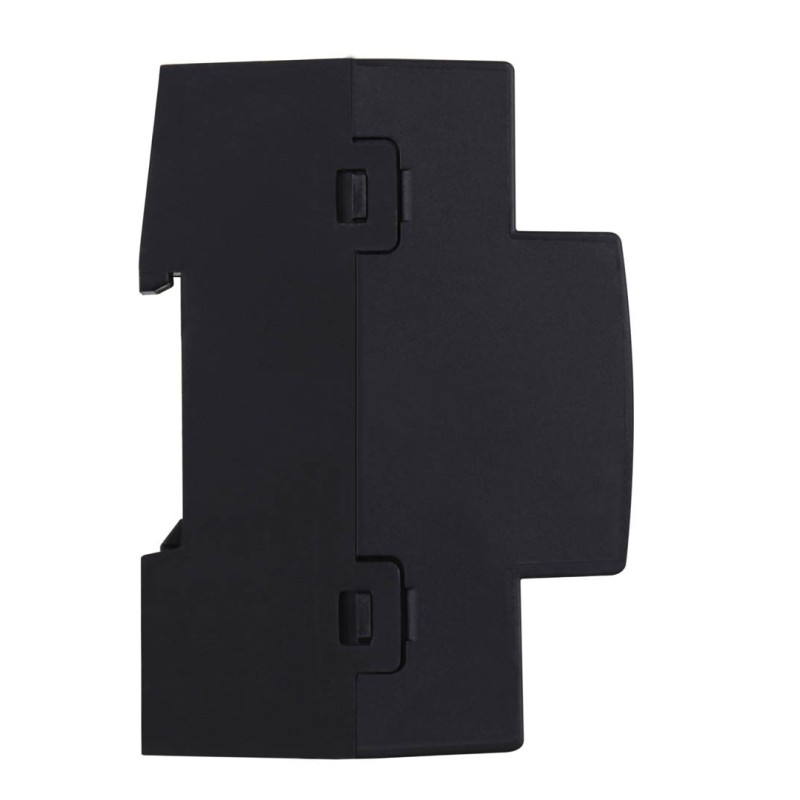

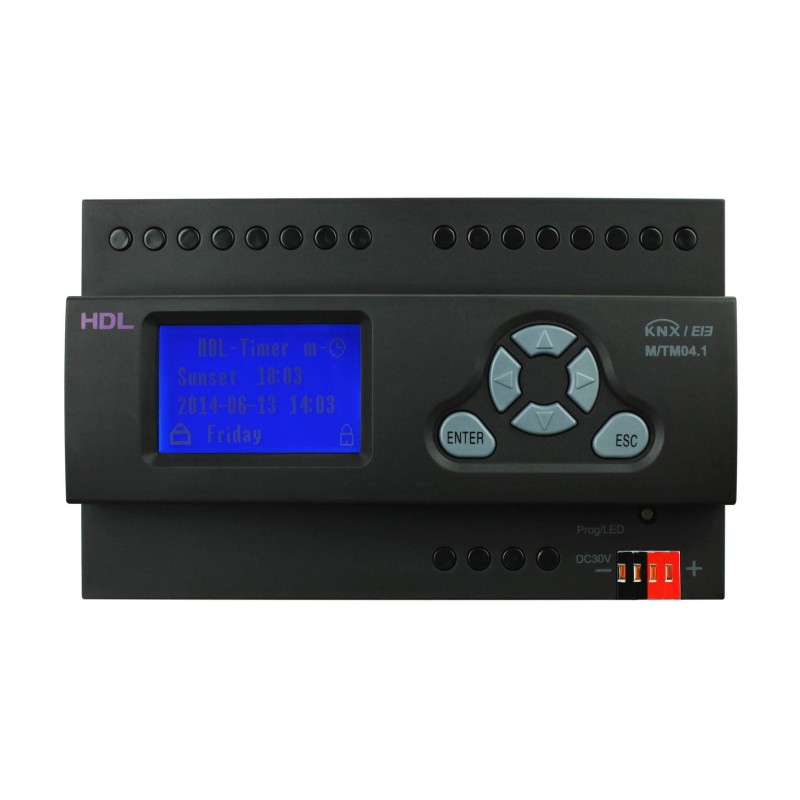

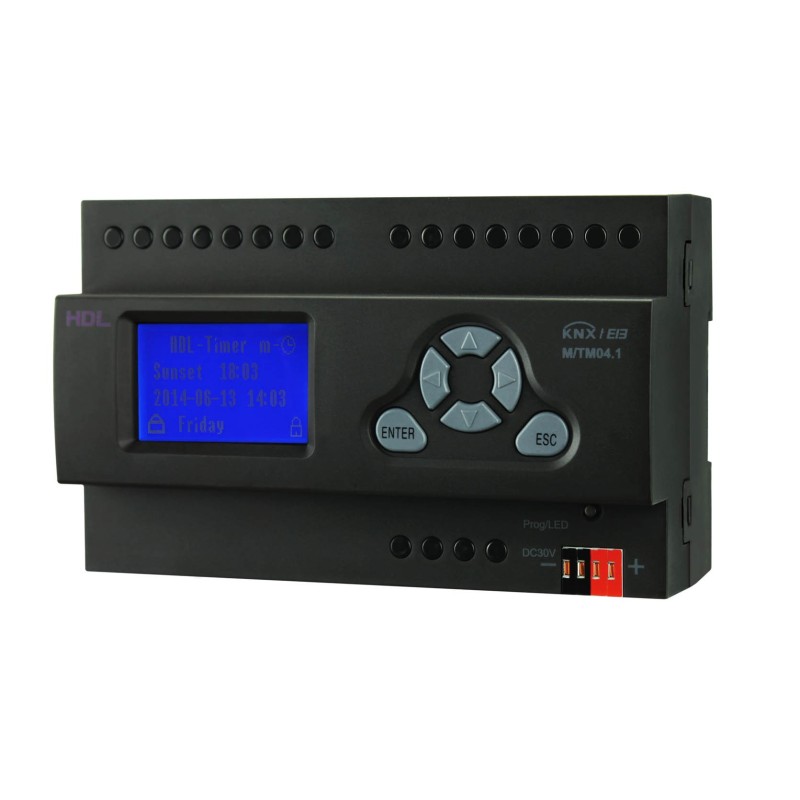

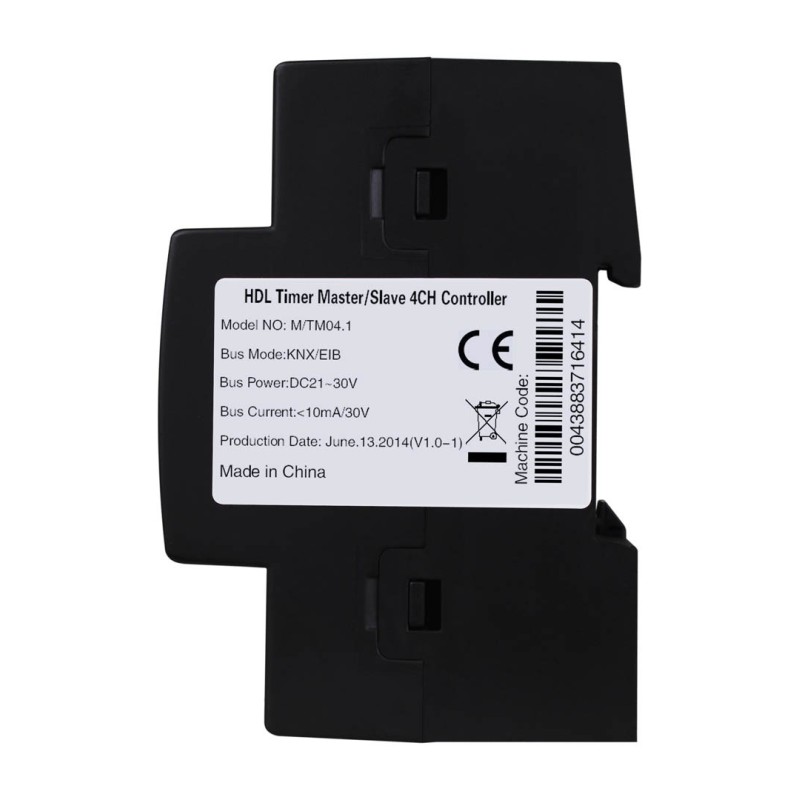

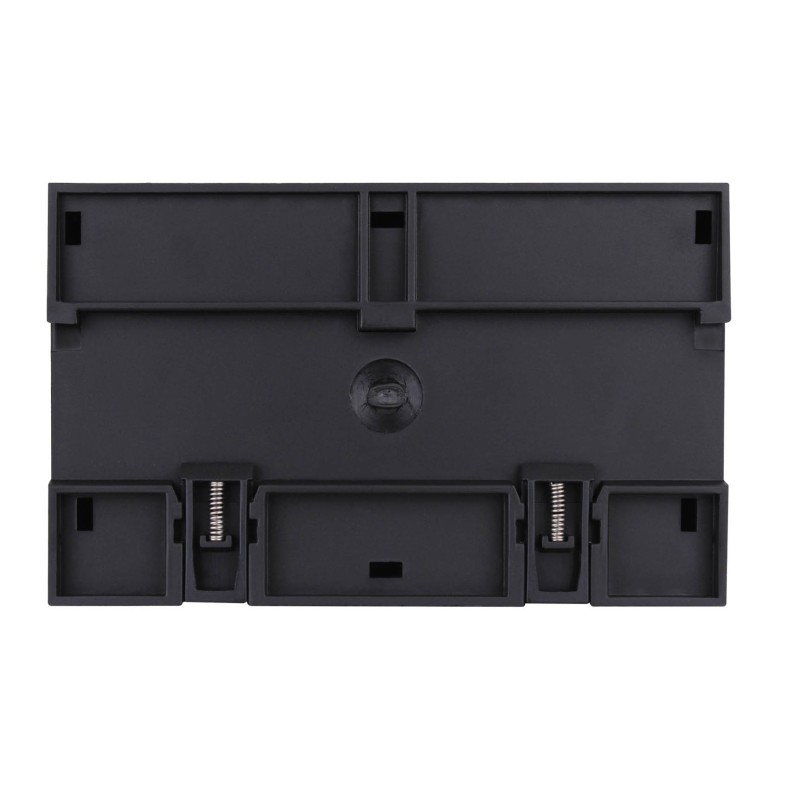

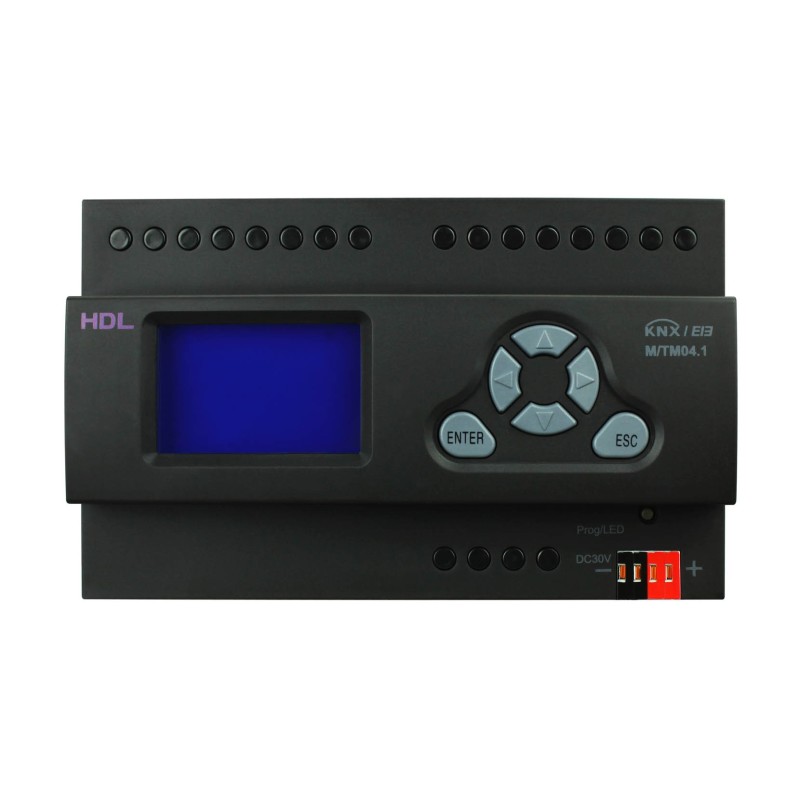

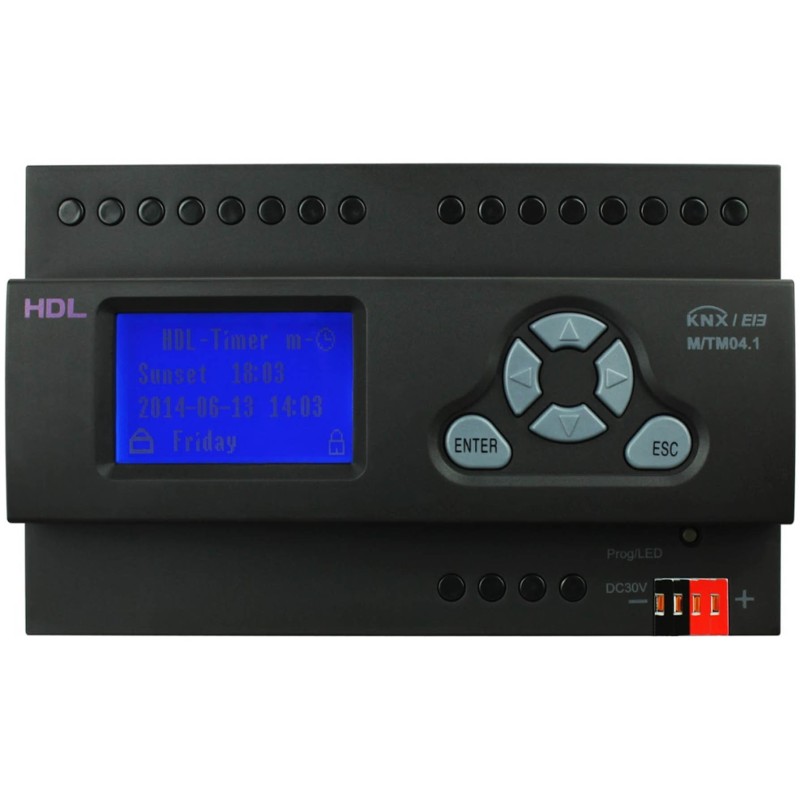

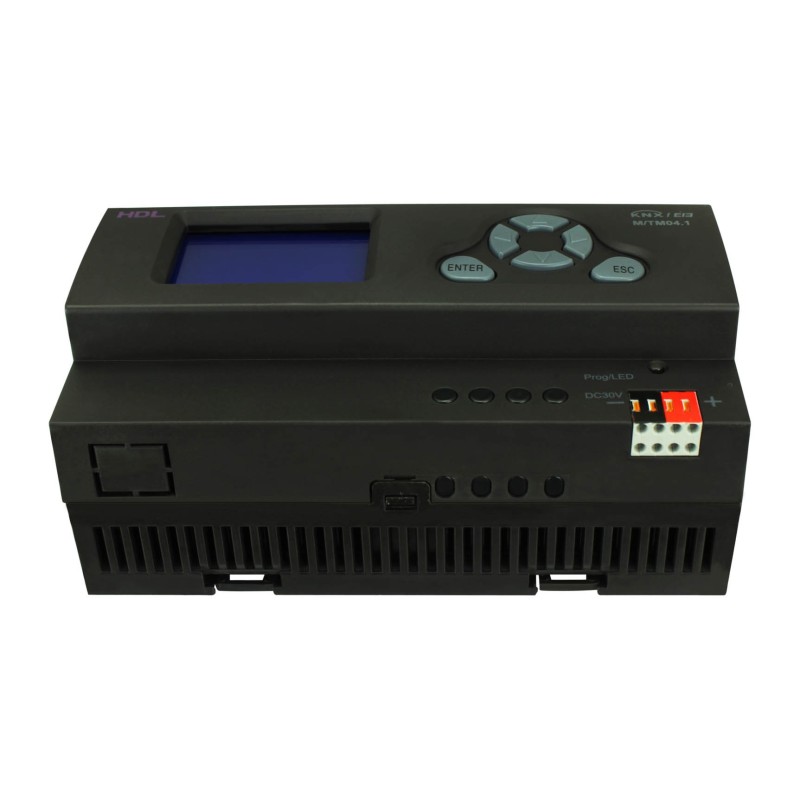

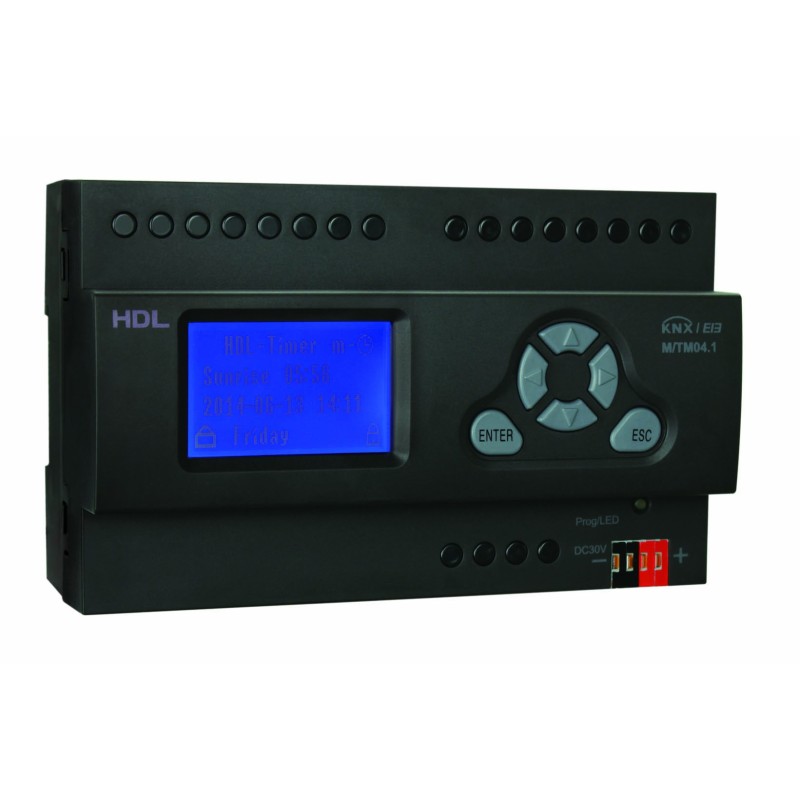

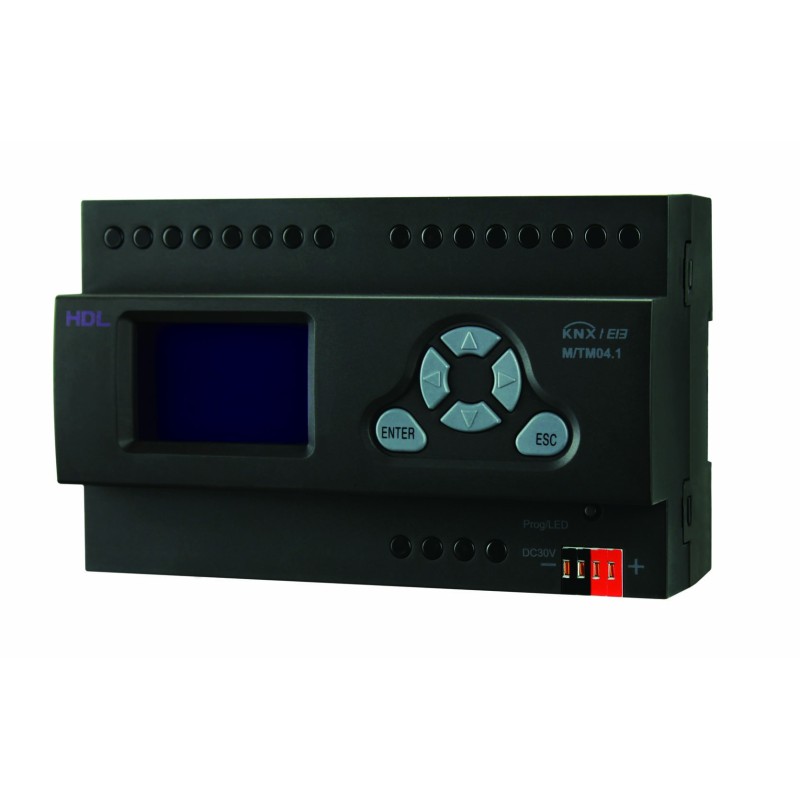

Master/Slave Timer Controller

Installed in junction box or on DIN rail with accessory, Supports protocols conversion between RS485 to KNX,Three working modes: string mode, hexadecimal mode and data mode.
Dimension (mm): 46*45*18

DIN-Rail Mount, with USB Conector galvanically isolated from KNX Bus that establish a bidirectional data connection between PC and KNX BUS, Enable addressing, setting parameters, visualzation, protocolin and diagnoisis of the bus devices.
Dimension (mm): 70*90*36

DIN-Rail Mount, to be used as coupler and Repeater(to amplify the signal), if as a line coupler, it can be linked with other line or backbone line, a separate power supply include a choke is required for each new line and each line will be electrically isolated, the line coupler can filter telegrams and permit pass or black them to other adjaccent lines.
Dimension (mm): 70*90*36

Used for bidirectional data exchange between KNX and RS232, KNX and RS485. It supports 3 work modes: String mode, Hexadecimal mode, Data mode, supports up to 200 control targets.
Dimension (mm): 90*72*66

It can be used as line‐ or backbone coupler and provides a data connection between the upper KNX net/IP line (main line or backbone) and the lower TP KNX bus line (sub line).
It also provides with the tunnelling protocol a connection point for ETS to enable commissioning and monitoring.
Dimension (mm): 70*90*36

Gateway between HDL Link and KNX Bus communication,supports protocol http\tcp\udp\mqtt , supports KNX Assistance Software, KNX ETS, ON+, Cloud server Support intranet communication, remote access, integrating scene, logic, security,
clock, server automatic prompt upgrade,data backup, Driver management of third-party products and other functions, need auxiliary power supply 200mA/24V DC
Dimension (mm): 90*36*63.7
