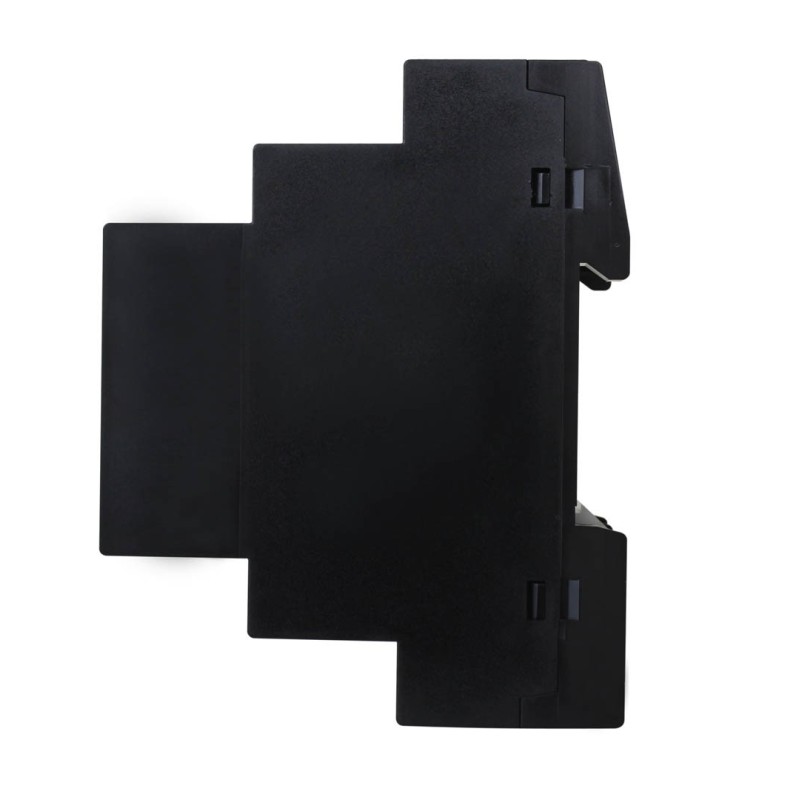

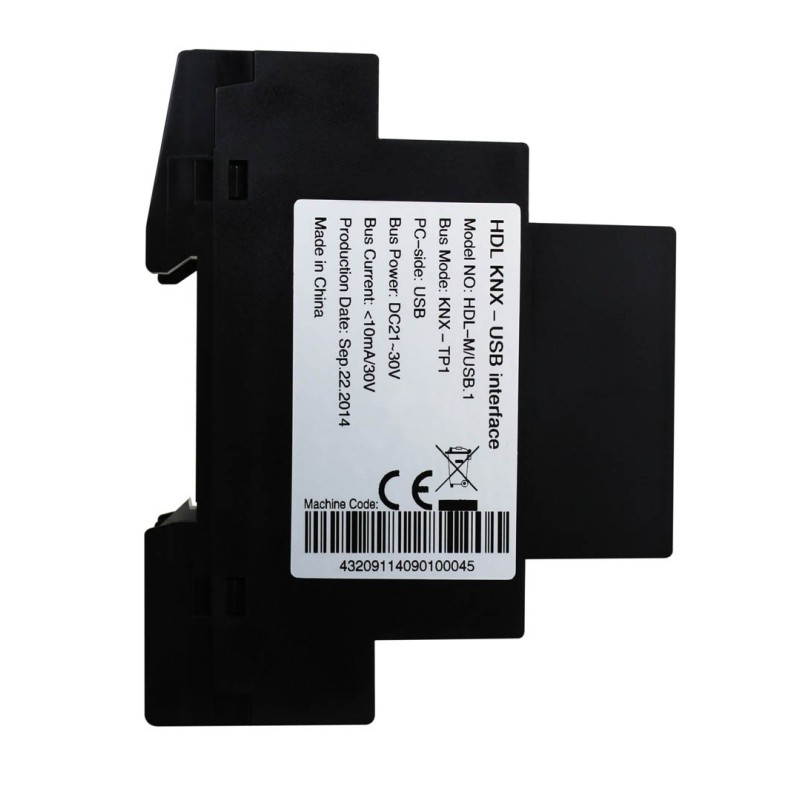

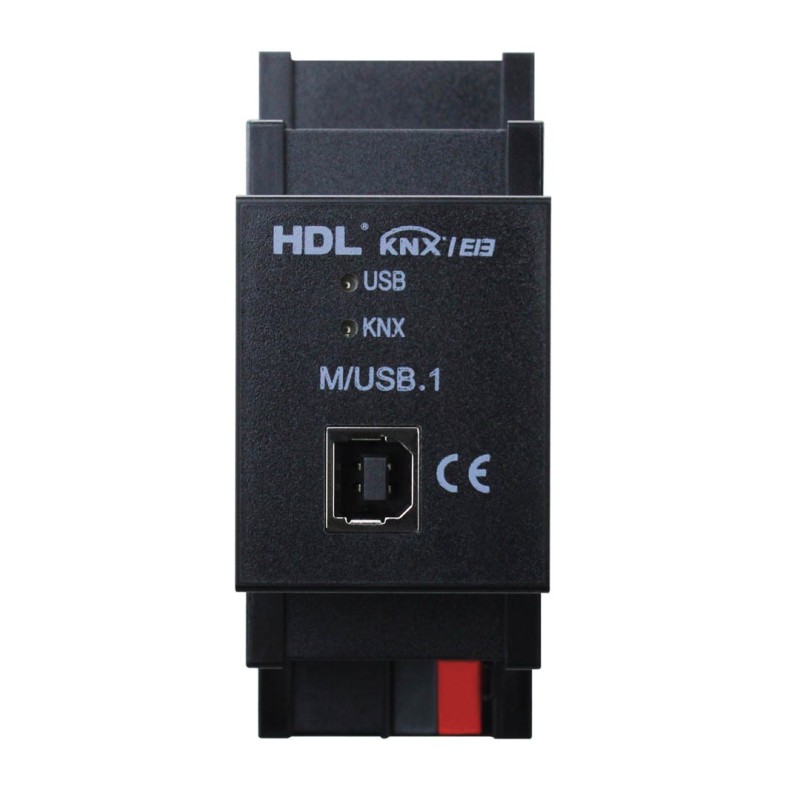

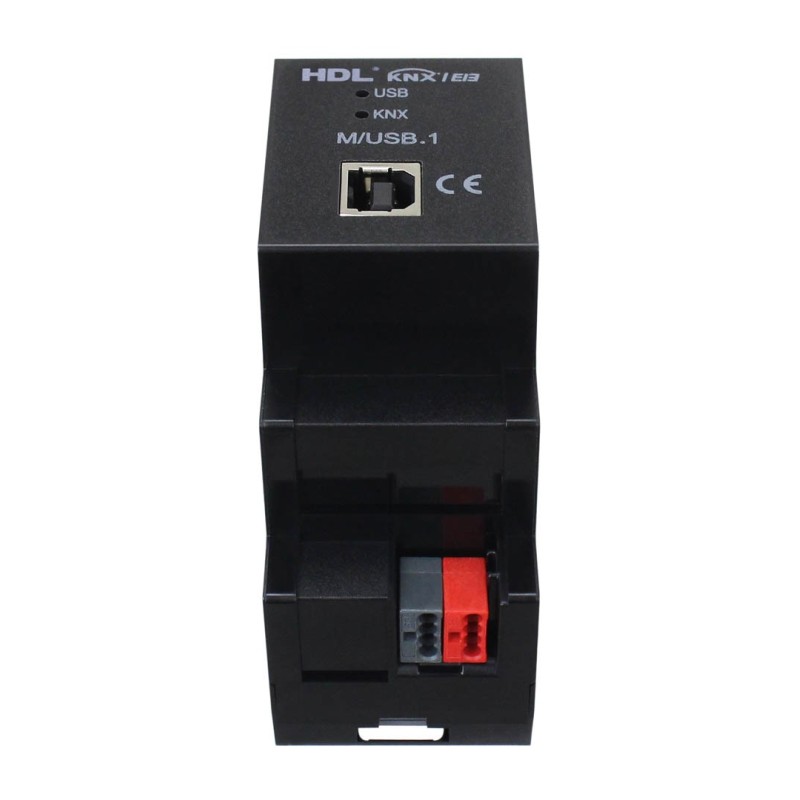

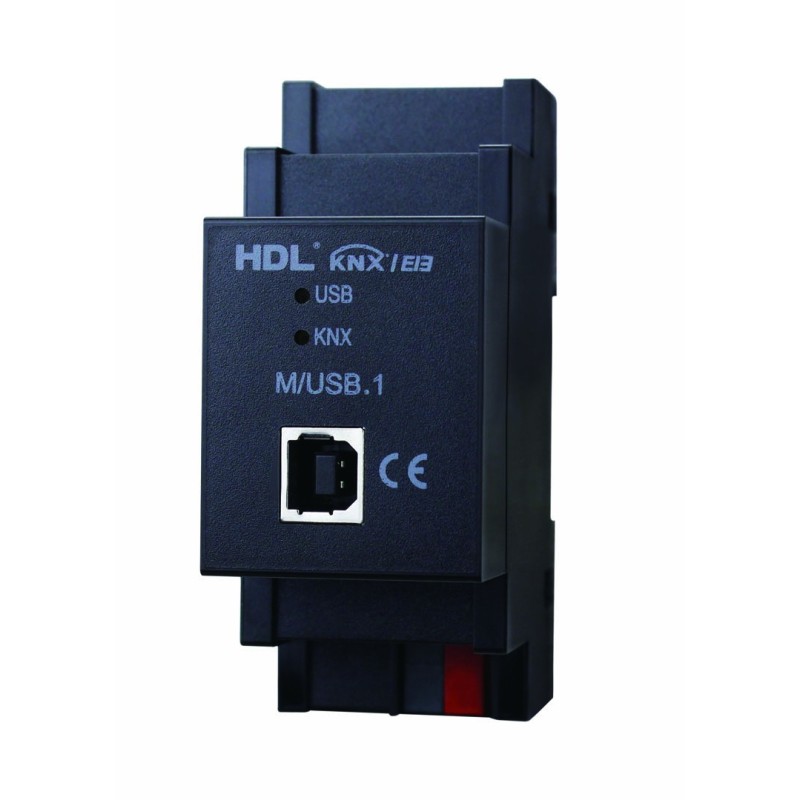

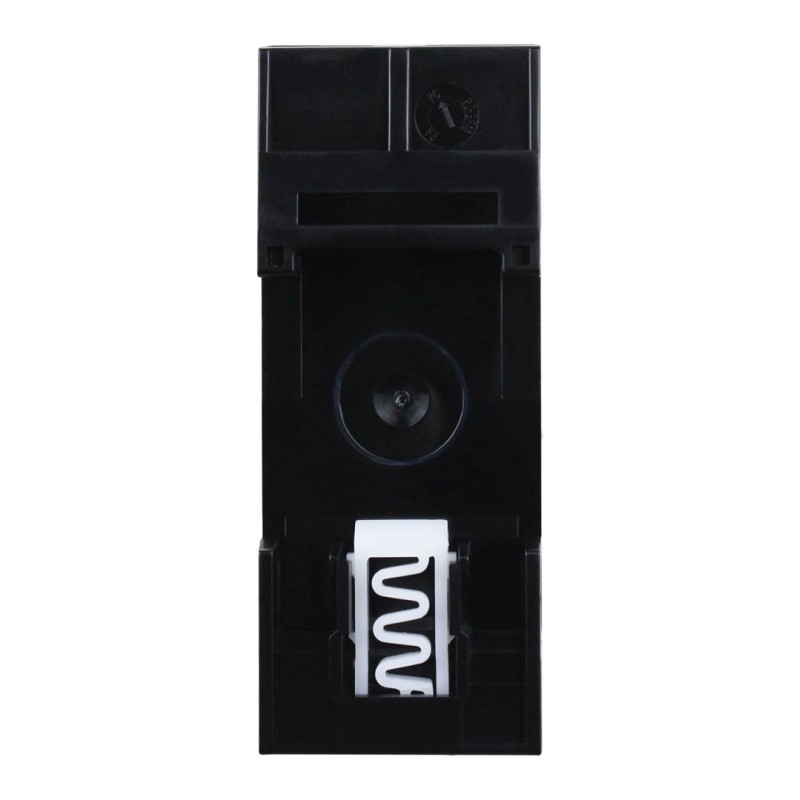

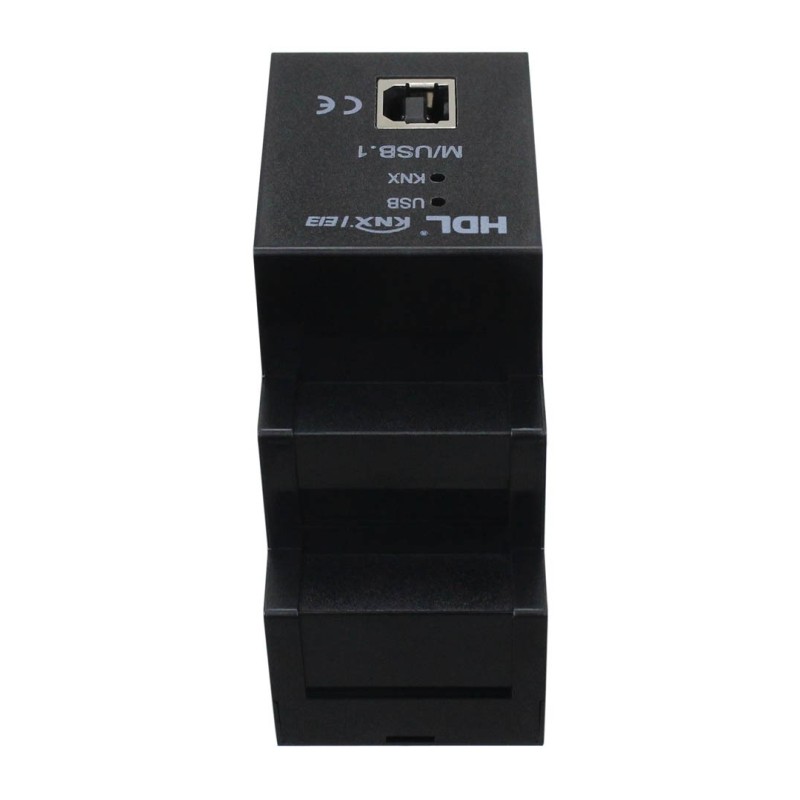

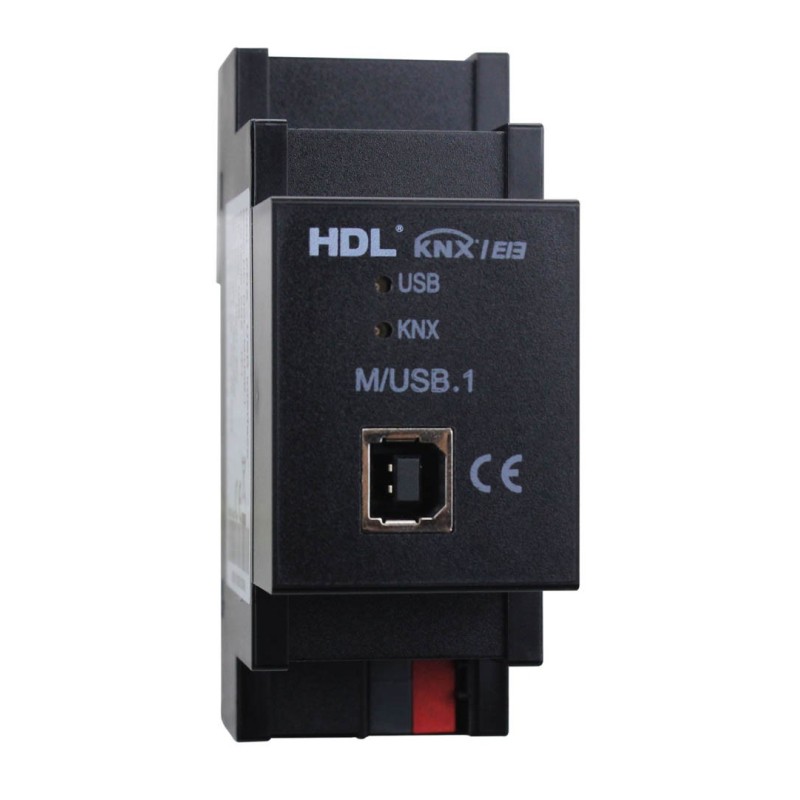

KNX USB Interface

Used for bidirectional data exchange between KNX and RS232, KNX and RS485. It supports 3 work modes: String mode, Hexadecimal mode, Data mode, supports up to 200 control targets.
Dimension (mm): 90*72*66

This timer controller is embedded with RTC, can run real time itself, can used as master timer and slave timer.
Dimension (mm): 144*90*66

DIN-Rail Mount, to be used as coupler and Repeater(to amplify the signal), if as a line coupler, it can be linked with other line or backbone line, a separate power supply include a choke is required for each new line and each line will be electrically isolated, the line coupler can filter telegrams and permit pass or black them to other adjaccent lines.
Dimension (mm): 70*90*36

Gateway between HDL Link and KNX Bus communication,supports protocol http\tcp\udp\mqtt , supports KNX Assistance Software, KNX ETS, ON+, Cloud server Support intranet communication, remote access, integrating scene, logic, security,
clock, server automatic prompt upgrade,data backup, Driver management of third-party products and other functions, need auxiliary power supply 200mA/24V DC
Dimension (mm): 90*36*63.7

Installed in junction box or on DIN rail with accessory, Supports protocols conversion between RS485 to KNX,Three working modes: string mode, hexadecimal mode and data mode.
Dimension (mm): 46*45*18

It can be used as line‐ or backbone coupler and provides a data connection between the upper KNX net/IP line (main line or backbone) and the lower TP KNX bus line (sub line).
It also provides with the tunnelling protocol a connection point for ETS to enable commissioning and monitoring.
Dimension (mm): 70*90*36
