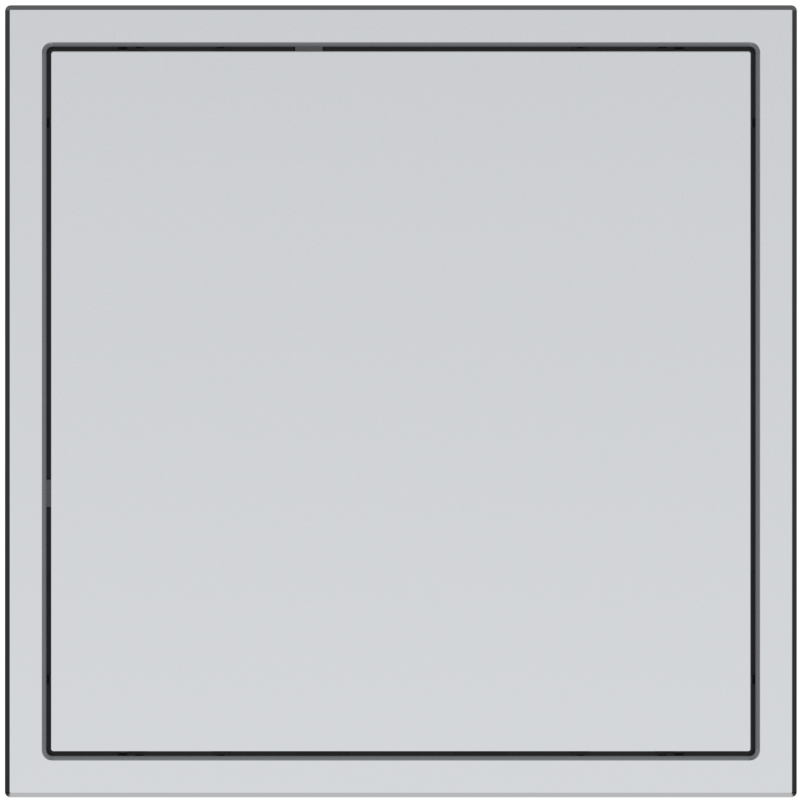

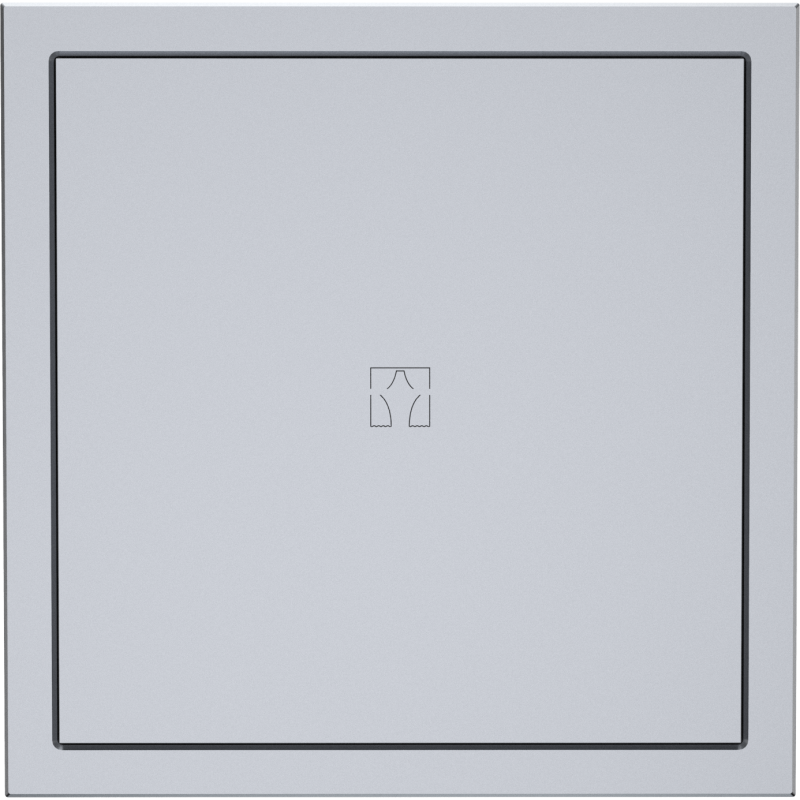

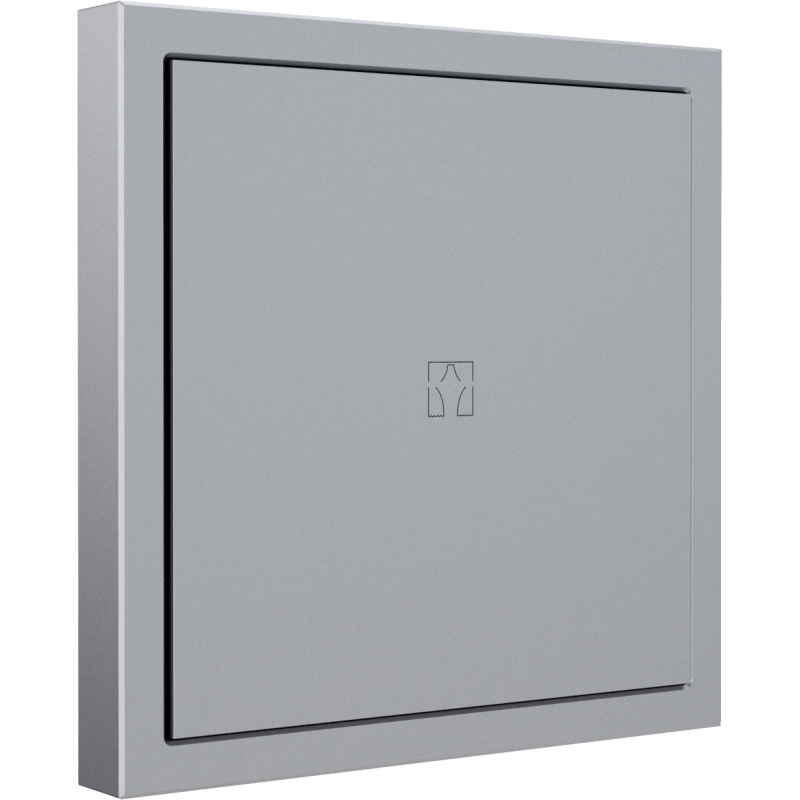

Tile Series 1 button smart panel 2.1 Metal - Space Gray
Product code: MPBT-1B-KT.18
Tile Series 1 button smart panel 2.1, used to control lighting, curtain and scene, Metal(Champagne Gold/space gray),
Built-in temperature sensor and proximity sensor, with LED backlight,customizable icon, Frame is NOT included,
Powered by MPFPIT-1P-KT.18
Dimensions: 86*86*10.5
KNX Tile Series
Featuring cross-protocol compatibility, a comprehensive product portfolio, and globally adaptable installation, it meets diverse project demands with ease. Every detail — from precision engineering to refined finishes — is crafted to enhance reliability and elevate the user experience.
Tile Series offers over 30 styles, including modular keypads, thermostats, touch panels, and sockets. It supports using a single intelligent panel or combining multiple units to expand functionality. For international projects, HDL provides country-specific, standard-compliant sockets for power, network, doorbells, and waterproof needs—ensuring seamless integration, one-stop procurement, and a consistent aesthetic.
Precise Microwave Sensing Powered by HDL RadarX Sensing, the Tile Series uses precise 5.8GHz microwave sensing with adjustable sensitivity levels (1–5) to automatically illuminate the panel and trigger preset scenes—such as night lighting in bathrooms—without any physical touch. This hands-free solution enhances user convenience, boosts energy efficiency, and improves safety, especially for elderly users during nighttime, delivering a smarter and more comfortable experience.
Tile Series features an NTC temperature and humidity sensor combined with HDL’s multi-point data collection across up to eight panels. Using a dynamic weighted algorithm, it overcomes inaccuracies caused by single-point sensors affected by sunlight or airflow—delivering temperature readings within ±1°C of the actual room climate. This precision enables smarter automation, optimizing air conditioning and underfloor heating for enhanced comfort and energy efficiency. Note: The HDL testing laboratory provides the test data. Actual results may vary depending on the usage environment.
Tile Series features RGB key lights shining through laser-etched icons for instant visual feedback with a fast 0.5-second response. Colors change with scenes like warm yellow for home, deep blue for cinema, and lavender for sleep. Preset palettes suit gaming, kids’ rooms, and elderly users with high-contrast colors. This color language makes switch status clear and turns control into an immersive experience that fits any interior design.
Tile Series uses precise microwave sensing and group control to sync panel lights in a room. All panels wake or sleep together, avoiding flickering lights that disturb sleep. Soft, gradual backlight changes reduce eye strain and protect sleep quality. Ideal for bedrooms, children’s rooms, and senior care spaces, this system enhances nighttime comfort, prevents accidental operation, and lowers energy use.
- Supports various control targets
- Available in two materials and four colors
- Customizable with engraved images and text
- Engraving font size up to 12pt
- Metal and plastic frames support horizontal and vertical row installation
- Compatible with Buspro, KNX, and Zigbee protocols
Specifications
- Bus Power
- 17mA
- Buttons
- 1
- Series
- Tile Series
- Color
- Space gray
- Protocol
- KNX
